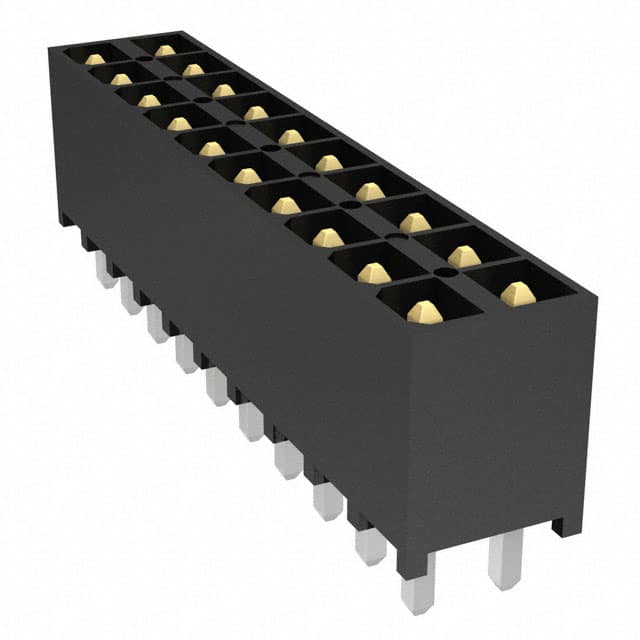

Samtec IPT1-110-01-L-D is a 20-position, 2-row, 2.54mm pitch through-hole shrouded header with male pins. It features a black LCP insulator and phosphor bronze contacts with gold plating.

✓ Total Stock: 7 pcs

$ Price Range: $1.32 - $2.70

IPT1-110-01-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	1633	On Request	On Request

IPT1-110-01-L-D Description

Short technical summary and product information.

The Samtec IPT1-110-01-L-D is a 20-position, dual-row, 2.54mm pitch shrouded header designed for board-to-board applications. It features a through-hole mounting style with solder termination and a push-pull fastening mechanism. The insulator is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, ensuring reliable performance in demanding environments.

Electrical ratings include a current rating of 2.3A per contact and a voltage rating of 700 VAC / 990 VDC. The operating temperature range spans -55°C to +125°C. Contacts are made of phosphor bronze with a gold plating option (10 µ" over 50 µ" nickel) for enhanced durability and signal integrity.

The connector offers a 4-wall shrouded design for mechanical and electrical protection. Key dimensions include an insulation height of 6.35mm and an overall contact length of 8.51mm. The part is lead-free solderable and RoHS compliant.

IPT1-110-01-L-D Quick Information

Product Type: Header Connector

Series: IPT1

Canonical Name: Samtec IPT1-110-01-L-D 20 Position 2.54mm Pitch Through Hole Shrouded Header

Subcategory: Shrouded Header

IPT1-110-01-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

IPT1-110-01-L-D Estimated Pricing

Qty	Low	High
1+	$2.70	$2.70
42+	$2.17	$2.17
105+	$1.91	$1.91
2,016+	$1.69	$1.69
5,019+	$1.32	$1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPT1-110-01-L-D Features

20 positions in 2 rows at 2.54mm pitch.
Through-hole mounting with solder termination.
Shrouded 4-wall design for contact protection.
Gold plated phosphor bronze contacts.
Operating temperature range -55°C to 125°C.

IPT1-110-01-L-D Applications

Board-to-board interconnects in industrial electronics.
Power and signal distribution in control systems.
Used in test and measurement equipment.
Suitable for harsh environment applications.

IPT1-110-01-L-D FAQs

5 frequently asked questions generated from this part’s specifications.

What is the pitch of the IPT1-110-01-L-D?

The pitch is 2.54mm (0.100").

What is the current rating per contact?

The current rating is 2.3A per contact.

What is the voltage rating?

The voltage rating is 700 VAC / 990 VDC.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What mounting type does this connector use?

It uses through-hole mounting with solder termination.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	3.94mm (0.155")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3A per Contact
Fastening Type	Push-Pull
Halogen Free	Yes
Insulation Color	Black
Insulation Height	6.35mm (0.250")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Lead Style	-01
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.335" (8.51mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Board
Tape & Reel	No
Termination	Solder
Voltage Rating	700 VAC/990 VDC
