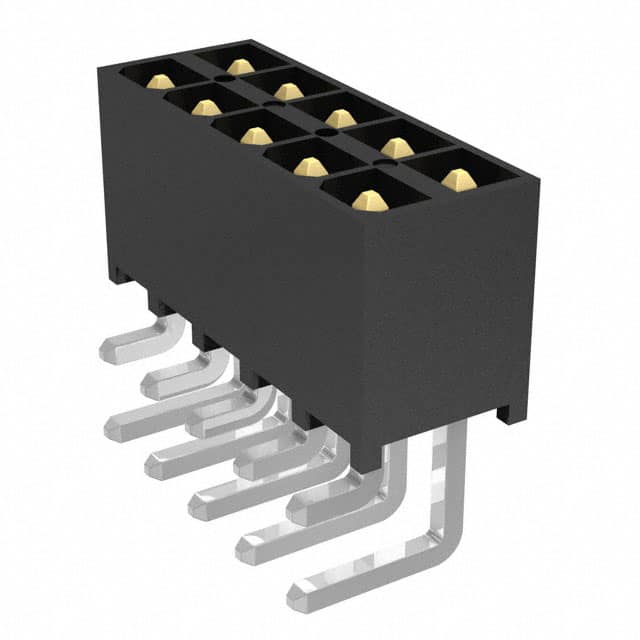

IPT1-105-01-L-D-RA Samtec IPT1-105-01-L-D-RA is a 10-position, 2.54mm pitch, right-angle header with male pins. It features a shrouded 4-wall design and is rated for 5.9A (2 pins powered) and 700VAC/990VDC.
Mfr Part #:

IPT1-105-01-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPT1-105-01-L-D-RA is a 10-position, 2.54mm pitch, right-angle header with male pins. It features a shrouded 4-wall design and is rated for 5.9A (2 pins powered) and 700VAC/990VDC.
✓ Total Stock: 4 pcs
$ Price Range: $1.14 - $2.29

IPT1-105-01-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPT1-105-01-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

IPT1-105-01-L-D-RA Description

Short technical summary and product information.

The Samtec IPT1-105-01-L-D-RA is a 10-position, 2-row, right-angle header with male pins, part of the IPT1 series. It features a 2.54mm pitch and row spacing, and is designed for board-to-board applications.



The connector is rated for 5.9A when two pins are powered, with a voltage rating of 700VAC and 990VDC. It operates over a temperature range of -55°C to +125°C. The contacts are phosphor bronze with gold plating on the mating area and tin on the tails.



The header is through-hole mounted with a right-angle orientation. It has a shrouded 4-wall design for protection. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The contact length is 3.94mm and insulation height is 5.08mm.



The component is lead-free solderable and RoHS3 compliant (unverified). It is available in a standard packaging (placeholder).

IPT1-105-01-L-D-RA Quick Information

Product Type: Header, Male Pins
Series: IPT1
Canonical Name: Samtec IPT1 Series Header, Male Pins, 10 Position, 2.54mm Pitch, Through Hole, Right Angle, Shrouded
Subcategory: Male Pins

IPT1-105-01-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPT1-105-01-L-D-RA Estimated Pricing

Qty Low High
1+ $2.29 $2.29
42+ $2.02 $2.02
84+ $1.70 $1.70
1,008+ $1.58 $1.58
2,016+ $1.38 $1.38
5,040+ $1.14 $1.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPT1-105-01-L-D-RA Features

  • 10-position, 2-row right-angle header.
  • 2.54mm pitch and row spacing.
  • Shrouded 4-wall design for protection.
  • Gold-plated contacts for reliable mating.
  • Rated for 5.9A and 700VAC/990VDC.

IPT1-105-01-L-D-RA Applications

  • Board-to-board interconnections in compact designs.
  • Right-angle connections for space-constrained layouts.
  • Industrial control and automation systems.
  • Test and measurement equipment.

IPT1-105-01-L-D-RA FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the IPT1-105-01-L-D-RA have?

10 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

5.9A when two pins are powered (per datasheet).

What is the voltage rating?

700VAC and 990VDC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to +125°C.
