| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,020 pcs
|
5020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

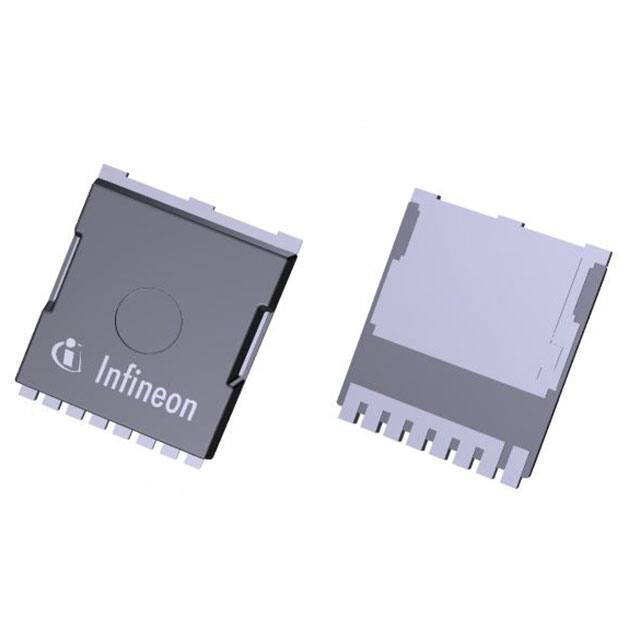

The Infineon IPT010N08NM5ATMA1 is an N-channel power MOSFET from the OptiMOS 5 family, designed for high-efficiency power conversion. It features a drain-source voltage rating of 80V and a maximum continuous drain current of 425A at Tc=25°C. The device achieves an ultra-low on-resistance of 1.05 mΩ (maximum at Vgs=10V, Id=150A), minimizing conduction losses. Key electrical characteristics include a typical gate charge of 178 nC, input capacitance of 16000 pF, and output charge of 207 nC. The MOSFET is 100% avalanche tested with an avalanche energy rating of 817 mJ. It is housed in a surface-mount PG-HSOF-8 package (8-PowerSFN) and supports a wide operating junction temperature range of -55°C to 175°C. The device is RoHS compliant and halogen-free, with Pb-free lead plating. It is suitable for high-frequency switching, synchronous rectification, and other power management applications demanding high current handling and low losses.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.85 | $7.85 |
| 10+ | $5.32 | $5.32 |
| 100+ | $3.88 | $3.88 |
| 500+ | $3.75 | $3.75 |
| 2,000+ | $3.48 | $3.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vds) is 80 V.
The package is 8-PowerSFN (PG-HSOF-8), surface mount.
The operating junction temperature range is -55°C to 175°C.
Yes, it is RoHS3 compliant and halogen-free per IEC61249-2-21.
The maximum continuous drain current is 425 A at Tc=25°C and 43 A at Ta=25°C.
The typical gate charge is 178 nC; maximum is 223 nC at Vgs=10V.
The maximum drain-source on-resistance is 1.05 mΩ at Vgs=10V, Id=150A.
