| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,086 pcs
|
1086 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Input Type | |
| Mounting Style | |
| Mounting Type | |
| Number of Inputs | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The STMicroelectronics IPS160HFTR is a single channel high-side switch belonging to the Power Distribution Switches, Load Drivers category. It is designed for robust power management applications, offering a wide operating supply voltage range from 8V to 60V. The device provides a maximum output current of 2.4A with a typical on-resistance of 60mOhm.
Key electrical characteristics include a current limit of 2.6A and fault protection features such as fixed current limiting, open load detection, and over-temperature protection. The switch type is general purpose, with a P-channel output configuration operating in a high-side setup. It features a fast on-time of 30 us and off-time of 20 us.

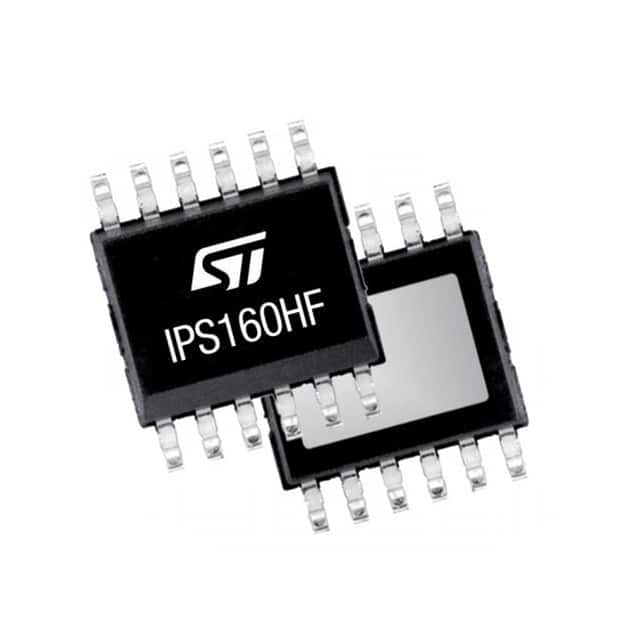

This component is housed in a PowerSSO-12 package, specifically a 12-LSOP with an exposed pad, suitable for surface mounting. The operating temperature range is specified from -40°C to 150°C (TJ), making it suitable for industrial applications. The input type is non-inverting, and the device has a ratio of 1:1.
Environmental compliance includes RoHS3 compliance and an MSL rating of 3 (168 Hours). The REACH status is unaffected. This part is active and suitable for various industrial and automotive power control needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IPS160HFTR operates from 8V to 60V.
The maximum output current is 4.2A.
The typical on-resistance is 60mOhm.
The operating junction temperature range is -40°C to 150°C.
The IPS160HFTR is available in a PowerSSO-12 surface-mount package.
