| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The STMicroelectronics IPS1025HQ-32 is a high-side power distribution switch offering high efficiency. It is designed for applications requiring robust power control and protection.
Key electrical specifications include an operating voltage range of 8V to 60V and a continuous current capability of 5.6A. The switch features a low on-resistance of 12mOhm (typical) and utilizes an N-Channel output configuration. It supports a logic interface and provides comprehensive fault protection, including current limiting, overload, over-temperature, reverse current, short circuit, and undervoltage lockout (UVLO).
This device is suitable for general-purpose switching applications. It is packaged in a 48-VFQFN Exposed Pad and is designed for surface mount installation, operating within a temperature range of -40°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 150°C.
The voltage range is 8V to 60V.
The typical Rds On is 12 mOhm.

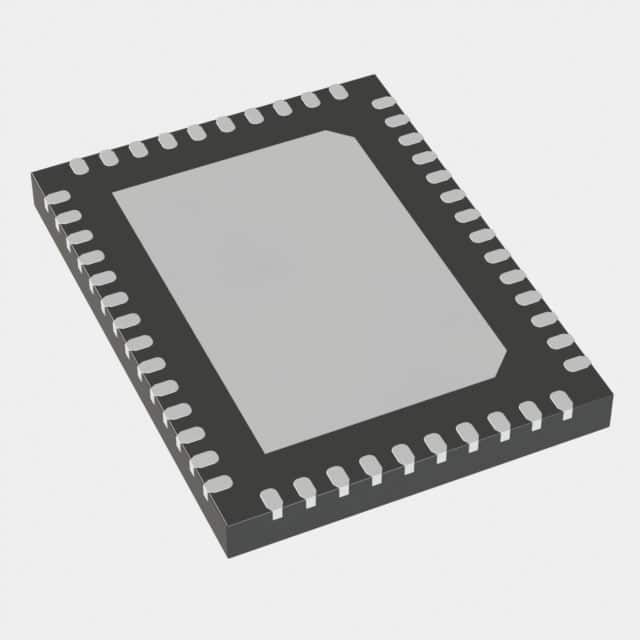

The IPS1025HQ-32 is in a 48-VFQFN Exposed Pad package.
The IPS1025HQ-32 is a surface mount device.
It offers current limiting (fixed), over load, over temperature, reverse current, short circuit, and UVLO protection.
