IPS1025HFTR The STMicroelectronics IPS1025HFTR is a high-side power distribution switch with a voltage range of 8.65V to 60V. It offers a low on-resistance of 12mOhm and includes comprehensive fault protection.
Mfr Part #:

IPS1025HFTR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics IPS1025HFTR is a high-side power distribution switch with a voltage range of 8.65V to 60V. It offers a low on-resistance of 12mOhm and includes comprehensive fault protection.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.32

IPS1025HFTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPS1025HFTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Fault Protection
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

IPS1025HFTR Description

Short technical summary and product information.

The STMicroelectronics IPS1025HFTR is a high-efficiency, high-side power distribution switch designed for robust load management. It operates within a wide voltage range of 8.65V to 60V, making it suitable for various power applications.



Key electrical characteristics include a typical on-resistance of 12mOhm, ensuring minimal power loss. The device features a single N-Channel output configured for high-side switching. It provides essential fault protection mechanisms, including fixed current limiting, over-temperature protection, over-voltage protection, short-circuit protection, and undervoltage lockout (UVLO).

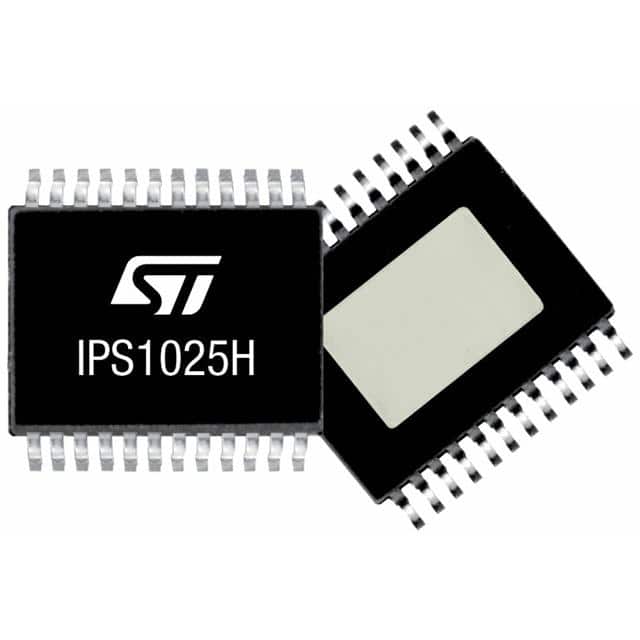

This component is housed in a PowerSSO-24 package, designed for surface mounting. The operating temperature range is from -40°C to 150°C, allowing for use in demanding environments. The IPS1025HFTR is classified as a general-purpose switch, offering versatility in design applications.

IPS1025HFTR Quick Information

Product Type: Power Distribution Switch
Canonical Name: STMicroelectronics IPS1025HFTR High-Side Switch
Subcategory: Load Driver

IPS1025HFTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPS1025HFTR Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPS1025HFTR Features

  • High-side N-channel power switch.
  • Wide 8.65V to 60V voltage range.
  • Low 12mOhm typical on-resistance.
  • Integrated fault protection features.
  • Surface mount PowerSSO-24 package.

IPS1025HFTR Applications

  • Ideal for high-side load switching.
  • Suitable for automotive applications.
  • Used in industrial power systems.
  • Protects against overcurrent faults.
  • Manages various load types.

IPS1025HFTR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the IPS1025HFTR?

The operating voltage range is 8.65V to 60V.

What is the typical on-resistance of the IPS1025HFTR?

The typical on-resistance is 12 mOhm.

What type of package is the IPS1025HFTR in?

The IPS1025HFTR is available in a PowerSSO-24 package.

What is the operating temperature range for this component?

The operating temperature range is -40°C to 150°C.

What fault protection features does the IPS1025HFTR offer?

It offers current limiting (fixed), over temperature, over voltage, short circuit, and UVLO protection.
