Mfr Part #:

IPS1-110-01-L-D

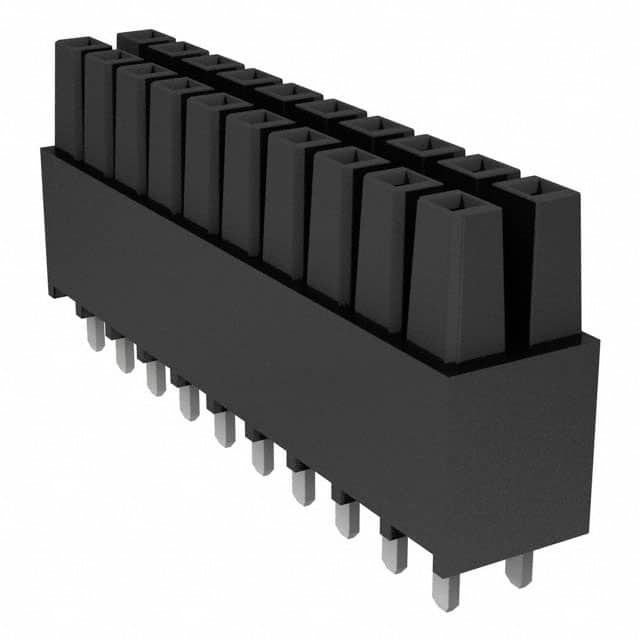

20 position female socket receptacle from Samtec's IPS1 series with 2.54mm pitch, through hole termination, and gold contact plating.

✓ Total Stock: 62 pcs

$ Price Range: $1.53 - $2.78

IPS1-110-01-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	62 pcs On Request	62 pcs	On Request	1	On Request	On Request	1632	On Request	On Request

IPS1-110-01-L-D Description

Short technical summary and product information.

The Samtec IPS1-110-01-L-D is a 20 position receptacle from the IPS1 isolated power system series. It features 2 rows of female sockets on a 2.54mm pitch with 2.54mm row spacing. The connector uses through hole solder termination and a push-pull fastening mechanism for board-to-board applications. The insulator is black LCP with an insulation height of 8.51mm. Contacts are phosphor bronze with 10µin gold plating over nickel, ensuring reliable connections. The operating temperature range is -55°C to 125°C. This receptacle is rated for 5.9A per contact (2 pins powered) and has a voltage rating of 775VAC/1095VDC (datasheet specifies 700VAC/990VDC). It is lead-free solderable and RoHS compliant, with an MSL of 1 (unlimited). The contact length is 2.54mm. This part is suitable for isolated power supply connections and general board-to-board interconnects.

IPS1-110-01-L-D Quick Information

Product Type: Receptacle, Female Socket

Series: IPS1

Canonical Name: 20 Position Receptacle, Female Socket, 2.54mm Pitch, Through Hole, Board to Board

Subcategory: Female Socket

IPS1-110-01-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

IPS1-110-01-L-D Estimated Pricing

Qty	Low	High
1+	$2.78	$2.78
25+	$2.65	$2.65
50+	$2.53	$2.53
100+	$2.41	$2.41
1,000+	$2.12	$2.12
2,500+	$1.70	$1.70
5,000+	$1.53	$1.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPS1-110-01-L-D Features

20 positions in 2 rows on 2.54mm pitch.
Through hole solder termination.
Board-to-board push-pull fastening style.
Operating temperature range -55°C to 125°C.
Gold contact plating for reliable connections.

IPS1-110-01-L-D Applications

Used in board-to-board stacking applications.
Suitable for isolated power supply connections.
Ideal for industrial control systems.
Common in data communication equipment.

IPS1-110-01-L-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPS1-110-01-L-D have?

20 positions in 2 rows.

What is the pitch of this connector?

2.54mm (0.100") pitch.

What is the current rating?

5.9 A (2 pins powered).

What is the voltage rating?

775VAC/1095VDC per existing DB, but datasheet specifies 700VAC/990VDC. Verify correct value.

What mounting type does this connector use?

Through hole mounting.

What is the operating temperature range?

-55°C to 125°C.

Is the IPS1-110-01-L-D lead-free solderable?

Yes, it is lead-free solderable per the datasheet.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	2.54mm (0.100")
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Current Rating	5.9 A (2 pins powered)
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.51mm (0.335")
Insulator Material	LCP
Lead Spacing	2.54 mm
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Style	Board to Board
Tape & Reel	No
Termination	Solder
Voltage Rating	775VAC, 1095VDC
