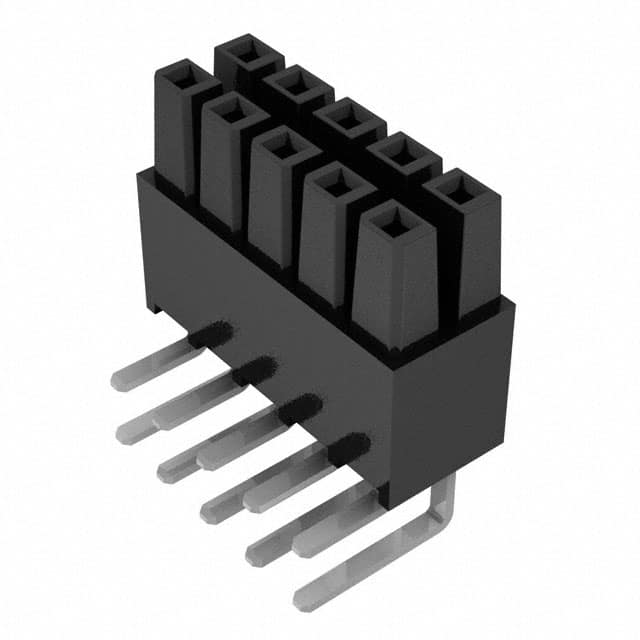

IPS1-105-01-S-D-RA Samtec IPS1-105-01-S-D-RA is a 10 position, 2 row, 2.54mm pitch through hole right angle receptacle with female socket contacts and tin finish.
Mfr Part #:

IPS1-105-01-S-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPS1-105-01-S-D-RA is a 10 position, 2 row, 2.54mm pitch through hole right angle receptacle with female socket contacts and tin finish.
✓ Total Stock: 70 pcs
$ Price Range: $1.67 - $2.90

IPS1-105-01-S-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPS1-105-01-S-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Fastening Type
Insulation Color
Insulation Height
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

IPS1-105-01-S-D-RA Description

Short technical summary and product information.

The Samtec IPS1-105-01-S-D-RA is a 10-position, 2-row receptacle from the IPS1 series designed for board-to-board applications. It features a 2.54mm pitch and row spacing, with a through hole right angle mounting style for solder termination. The connector uses female socket contacts with a tin finish of 30.0µin thickness.



The receptacle has a push-pull fastening type and a black insulation with a height of 4.95mm. It is rated for 775VAC and 1095VDC, with an operating temperature range of -55°C to 125°C. The contact length is 2.54mm, and all 10 positions are loaded.



This connector is suitable for applications requiring a reliable board-to-board interconnect with a compact right-angle form factor. The tin contact finish provides good solderability and corrosion resistance for general-purpose use.

IPS1-105-01-S-D-RA Quick Information

Product Type: Rectangular Connector - Receptacle
Series: IPS1
Canonical Name: Samtec IPS1 Series 10 Position 2.54mm Pitch Through Hole Right Angle Receptacle
Subcategory: Board to Board

IPS1-105-01-S-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPS1-105-01-S-D-RA Estimated Pricing

Qty Low High
1+ $2.90 $2.90
25+ $2.80 $2.80
516+ $2.64 $2.64
1,032+ $2.34 $2.34
2,537+ $1.86 $1.86
5,031+ $1.67 $1.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPS1-105-01-S-D-RA Features

  • 10 position 2 row 2.54mm pitch receptacle.
  • Through hole right angle solder termination.
  • Tin contact finish 30.0µin thickness.
  • Rated for 775VAC and 1095VDC operation.
  • Operating temperature range -55°C to 125°C.

IPS1-105-01-S-D-RA Applications

  • Board-to-board interconnect applications.
  • Right angle PCB mounting configurations.
  • General purpose signal connection.

IPS1-105-01-S-D-RA FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the IPS1-105-01-S-D-RA have?

The connector has 10 positions in 2 rows.

What is the pitch of this connector?

The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").

What is the voltage rating of this receptacle?

It is rated for 775VAC and 1095VDC.

What is the mounting type for this part?

It is a through hole, right angle mounting type with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What contact finish does this connector use?

The contacts have a tin finish with a thickness of 30.0µin (0.76µm).
