| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,738 pcs
|
1738 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Capacitance | |
| Power Dissipation | |
| SVHC Present | |
| Storage Temperature |

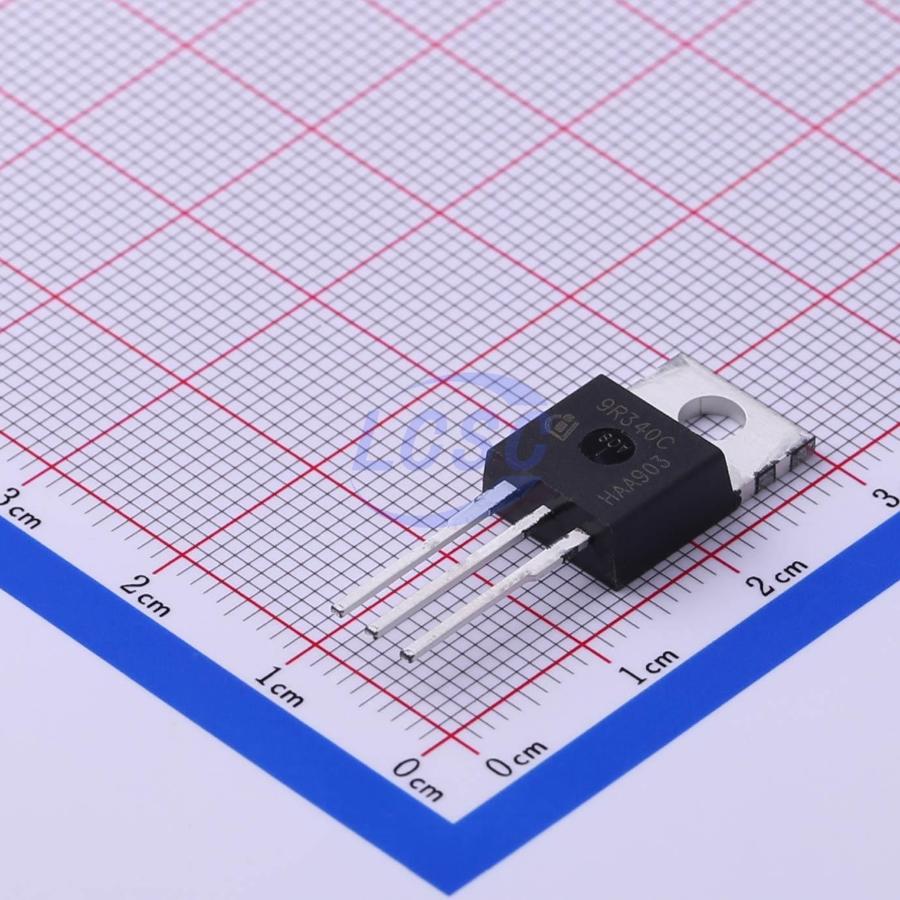

The Infineon IPP90R340C3 is a high-performance CoolMOS™ Power Transistor designed for demanding applications. It features a maximum drain-source breakdown voltage of 900V and a low R DS(on) of 0.34 Ohms at 25°C, making it highly efficient.
Key electrical characteristics include an ultra-low gate charge of 94nC typical, and a continuous drain current of 15A at 25°C. The transistor is rated for extreme dv/dt and offers high peak current capability.
Packaged in a PG-TO220 case, this MOSFET is suitable for mounting directly onto a heatsink. Its operating temperature range is -55°C to 150°C. The device is RoHS compliant and meets MSL 1 standards.
This power transistor is designed for applications such as Quasi Resonant Flyback/Forward topologies, PC Silverbox, consumer electronics, and industrial switch-mode power supplies (SMPS).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source breakdown voltage is 900V.
The typical gate threshold voltage is 3V.
The maximum R DS(on) at 25°C is 0.34 Ohms.
The typical total gate charge is 94nC.
The continuous drain current at 25°C is 15A.
The operating and storage temperature range is -55°C to 150°C.
The package type is PG-TO220.
