Mfr Part #:

IPP90R1K2C3

Mfr Name: Infineon

The Infineon IPP90R1K2C3 is a 900V N-channel CoolMOS™ power MOSFET. It offers low on-state resistance and high current capability for power supply applications.

✓ Total Stock: 20,513 pcs

$ Price Range: $2.40

IPP90R1K2C3 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	15,250 pcs On Request	15250 pcs	On Request	1	On Request	On Request	1925+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	5,040 pcs On Request	5040 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	223 pcs On Request	223 pcs	On Request	1	On Request	On Request	23+	On Request	On Request

IPP90R1K2C3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Input Capacitance	710 pF
Lead Style	Through Hole
Mounting Type	Through Hole
Power Dissipation	83 W
SVHC Present	Not Present

View Similar Products (0)

IPP90R1K2C3 Description

Short technical summary and product information.

The Infineon IPP90R1K2C3 is a high-performance N-channel power MOSFET from the CoolMOS™ 900V family. Designed for demanding applications, it features a breakdown voltage of 900V and a maximum on-state resistance of 1.2 Ohms at 25°C.

Key electrical characteristics include a typical gate charge of 28 nC and a continuous drain current of 5.1A at 25°C. The device is qualified according to JEDEC standards for target applications such as Quasi Resonant Flyback/Forward topologies, PC Silverbox, consumer electronics, and industrial SMPS.

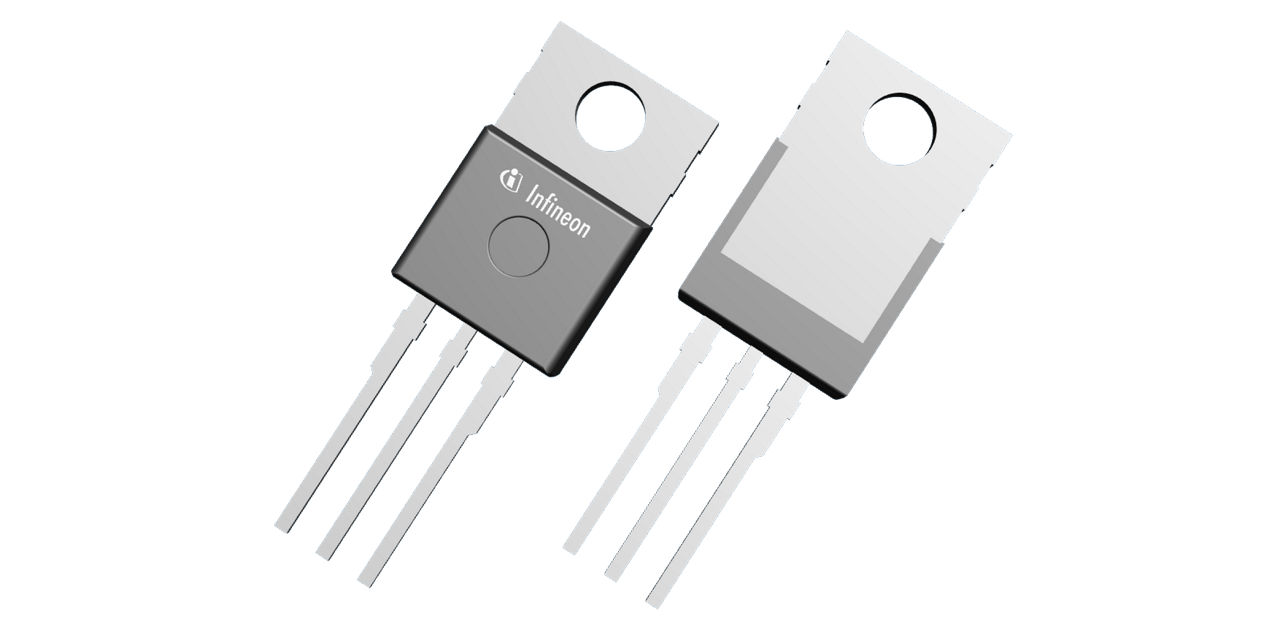

Packaged in a PG-TO220 package, the IPP90R1K2C3 is suitable for through-hole mounting. Its robust design includes extreme dv/dt rating and high peak current capability, making it a reliable choice for power conversion systems requiring efficiency and durability.

Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The operating temperature range is -55°C to 150°C.

IPP90R1K2C3 Quick Information

Product Type: N-channel Power MOSFET

Series: CoolMOS™ 900V

Canonical Name: Infineon IPP90R1K2C3 N-channel Power MOSFET

Subcategory: N-Channel

IPP90R1K2C3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: true

IPP90R1K2C3 Estimated Pricing

Qty	Low	High
1+	$2.40	$2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPP90R1K2C3 Features

900V Drain-source breakdown voltage.
1.2 Ohm maximum Rds(on) at 25°C.
5.1A maximum continuous drain current.
28 nC typical total gate charge.
PG-TO220 package for through-hole mounting.

IPP90R1K2C3 Applications

Ideal for quasi resonant flyback topologies.
Suitable for forward converter designs.
Used in PC Silverbox applications.
Designed for consumer electronics power supplies.
Applicable in industrial SMPS.

IPP90R1K2C3 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source breakdown voltage for the IPP90R1K2C3?

The maximum drain-source breakdown voltage is 900 V.

What is the typical gate threshold voltage of the IPP90R1K2C3 MOSFET?

The typical gate threshold voltage is 3 V.

What is the maximum on-state resistance (Rds(on)) at 25°C for the IPP90R1K2C3?

The maximum on-state resistance at 25°C is 1.2 Ohms.

What is the typical total gate charge (Qg) for the IPP90R1K2C3?

The typical total gate charge is 28 nC.

What package type is the IPP90R1K2C3 MOSFET supplied in?

The IPP90R1K2C3 is supplied in the PG-TO220 package.

Is the IPP90R1K2C3 RoHS compliant?

The IPP90R1K2C3 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the IPP90R1K2C3?

The Moisture Sensitivity Level is 1 Unlimited.
