| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
241 pcs
|
241 pcs | On Request | 1 | On Request | On Request | 2021+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

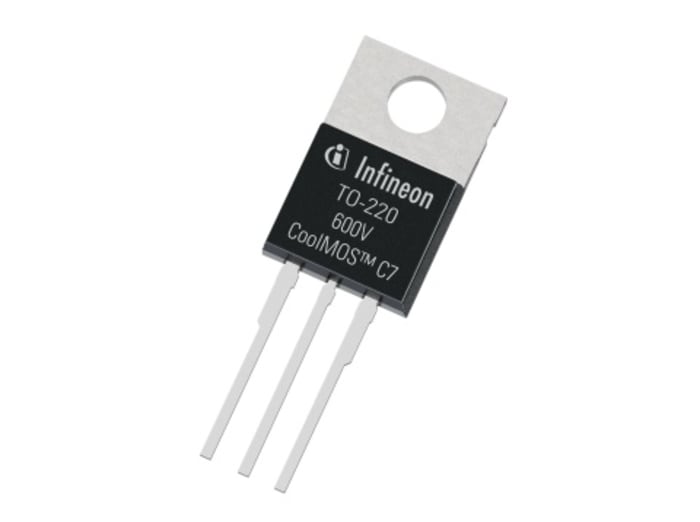

The IPP60R040C7XKSA1 is an N-Channel power MOSFET from Infineon Technologies, part of the CoolMOS C7 series based on superjunction (SJ) technology. It is designed for high-efficiency power conversion applications, offering a drain-source voltage rating of 600V (650V at Tj,max) and continuous drain current of 50A (73A at Tj<150°C). The device features a low typical on-resistance of 40mΩ at 24.9A and 10V gate drive, and a gate charge of 107nC, enabling fast switching with reduced losses.
This MOSFET is suitable for both hard and soft switching topologies such as PFC and LLC converters. It provides increased dv/dt ruggedness (120V/ns) and low output capacitance stored energy (Eoss of 12.6µJ at 400V), contributing to higher system efficiency. The body diode supports a high di/dt of 450A/µs. The device is housed in a TO-220-3 through-hole package (supplier package PG-TO220-3-1) and operates over a junction temperature range of -55°C to 150°C.
Typical applications include power factor correction (PFC) stages, pulse-width modulation (PWM) stages, and high-performance SMPS in computing, server, telecom, UPS, and solar inverter systems. The device is rated for industrial grade applications per JEDEC standards. Compliance to RoHS3, REACH, and MSL level 1 is listed but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.31 | $12.31 |
| 10+ | $6.93 | $6.93 |
| 100+ | $6.41 | $6.41 |
| 500+ | $6.32 | $6.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V, with a maximum of 650V at Tj,max.
TO-220-3 (supplier package PG-TO220-3-1) with through-hole mounting.
-55°C to 150°C (TJ).
Yes, it is listed as RoHS3 compliant, but this status is unverified.
40 mΩ maximum at 24.9A Id and 10V Vgs.
107 nC typical at 10V Vgs.
50A at Tc, and 73A at Tj<150°C.
