Mfr Part #:

IPP60R022S7XKSA1

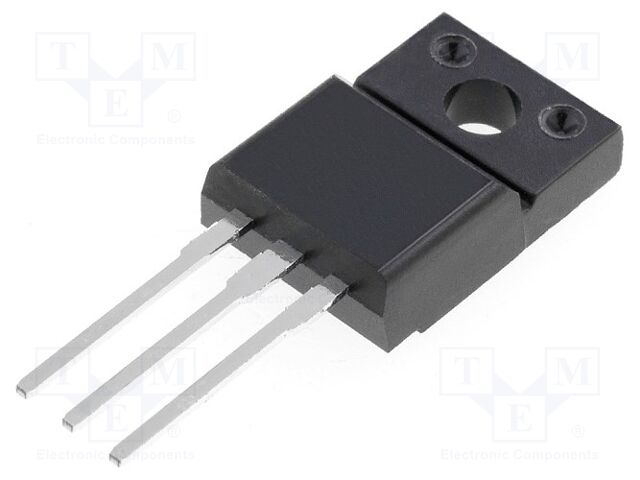

The IPP60R022S7XKSA1 is an N-Channel MOSFET from Infineon Technologies with a drain-source voltage of 600V and continuous drain current of 23A. It features a low on-resistance of 22mOhm and comes in a TO-220-3 package.

✓ Total Stock: 8,620 pcs

$ Price Range: $6.72 - $13.03

IPP60R022S7XKSA1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	8,620 pcs On Request	8620 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IPP60R022S7XKSA1 Description

Short technical summary and product information.

The IPP60R022S7XKSA1 is a 600V N-Channel MOSFET from Infineon Technologies' CoolMOS S7 series, designed for low-frequency switching applications such as solid state relays and circuit breakers. It uses CoolMOS S7 technology which balances cost and performance.

Key electrical specifications include a drain-source voltage of 600V, continuous drain current of 23A at case temperature, maximum on-resistance of 22mOhm at 23A and 12V gate drive, and typical gate charge of 150nC. The device is capable of a pulsed drain current of 375A and has a maximum power dissipation of 390W.

The MOSFET is housed in a THT TO-220-3 package (supplier package PG-TO220-3-1) and supports an operating junction temperature range of -55°C to 150°C. The drive voltage for minimum Rds(on) is 12V, with a maximum gate-source voltage rating of ±20V.

IPP60R022S7XKSA1 Quick Information

Product Type: N-Channel MOSFET

Series: S7

Canonical Name: IPP60R022S7XKSA1 N-Channel 600V 23A MOSFET

Subcategory: Single N-Channel

IPP60R022S7XKSA1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPP60R022S7XKSA1 Estimated Pricing

Qty	Low	High
1+	$13.03	$13.03
10+	$8.66	$8.66
100+	$7.97	$7.97
500+	$6.72	$6.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPP60R022S7XKSA1 Features

600V drain-source voltage rating.
23A continuous drain current.
22mOhm low on-resistance.
TO-220-3 through-hole package.
CoolMOS S7 technology for efficiency.

IPP60R022S7XKSA1 Applications

Solid state relay designs.
Circuit breaker applications.
Line rectification in power supplies.
Low frequency switching topologies.

IPP60R022S7XKSA1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of IPP60R022S7XKSA1?

600V.

What is the continuous drain current rating?

23A at case temperature.

What is the on-resistance of this MOSFET?

22mOhm maximum at 23A drain current and 12V gate voltage.

What package does the IPP60R022S7XKSA1 come in?

TO-220-3 (supplier package PG-TO220-3-1), through-hole mounting.

What is the operating temperature range?

-55°C to 150°C (junction temperature).

Is the IPP60R022S7XKSA1 RoHS compliant?

The part is listed as RoHS3 Compliant, but this compliance information is unverified.

What is the typical gate charge of this MOSFET?

150nC at 12V gate voltage.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Infineon Technologies
Current	23 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	12V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	150 nC
Industrial Grade	Yes
Input Capacitance (Ciss) (Max) @ Vds	5639 pF
Lead Style	Through Hole
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 150°C
Power Dissipation (Max)	390 W
Rds On (Max) @ Id, Vgs	22 mOhm
Supplier Device Package	PG-TO220-3-1
Tape & Reel	No
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4.5V
