| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,020 pcs
|
8020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

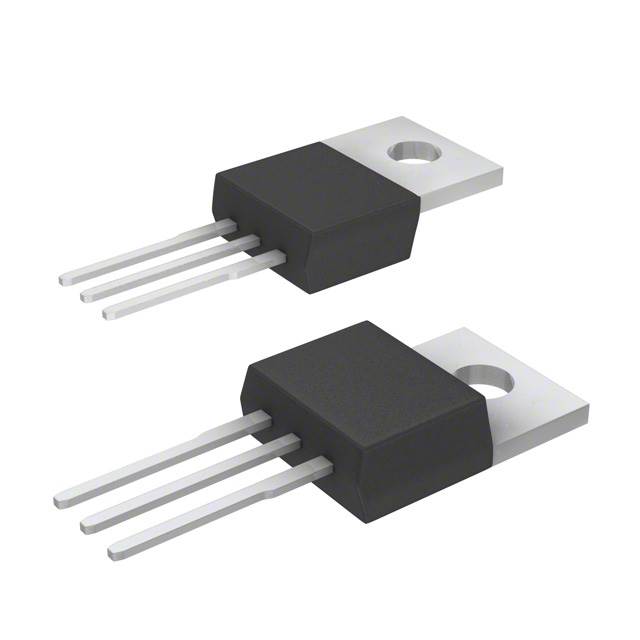

The IPP027N08N5AKSA1 is an N-channel enhancement mode MOSFET from Infineon's OptiMOS 5 family. It is designed for high-frequency switching and synchronous rectification applications. Key electrical characteristics include a maximum drain-source voltage of 80V, continuous drain current of 120A at Tc=25°C, and a typical on-resistance of 2.7mΩ at VGS=10V. The device offers a typical gate charge of 99nC and output charge of 116nC, enabling efficient switching performance. Input capacitance is 8970pF at VDS=40V, and single pulse avalanche energy is rated at 374mJ. Maximum power dissipation is 214W at Tc=25°C. The operating junction temperature range is -55°C to 175°C. The MOSFET is housed in a TO-220-3 through-hole package with Pb-free plating and is RoHS compliant and halogen-free per IEC61249-2-21.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.67 | $1.67 |
| 1,000+ | $1.65 | $1.65 |
| 2,500+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 V.
TO-220-3 (through-hole).
-55°C to 175°C.
Yes, RoHS3 compliant and Pb-free plating.
120 A at Tc = 25°C.
2.7 mΩ at VGS = 10V, ID = 100A.
99 nC at VGS = 10V.
