| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,020 pcs
|
4020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IPL65R099C7AUMA1 is an N-channel power MOSFET from Infineon Technologies, designed for high-voltage switching applications. It features a drain-source voltage rating of 650V and a continuous drain current of 21A at case temperature. The device offers a low maximum on-resistance of 99mOhm at 10V gate drive, minimizing conduction losses. With a typical gate charge of 45nC, the MOSFET enables efficient switching at moderate frequencies.
This MOSFET is optimized for power conversion topologies such as flyback, PFC, and half-bridge converters. It operates over a junction temperature range of -40°C to 150°C and can dissipate up to 128W. The input capacitance of 2140pF at 400V drain-source voltage provides predictable switching behavior.

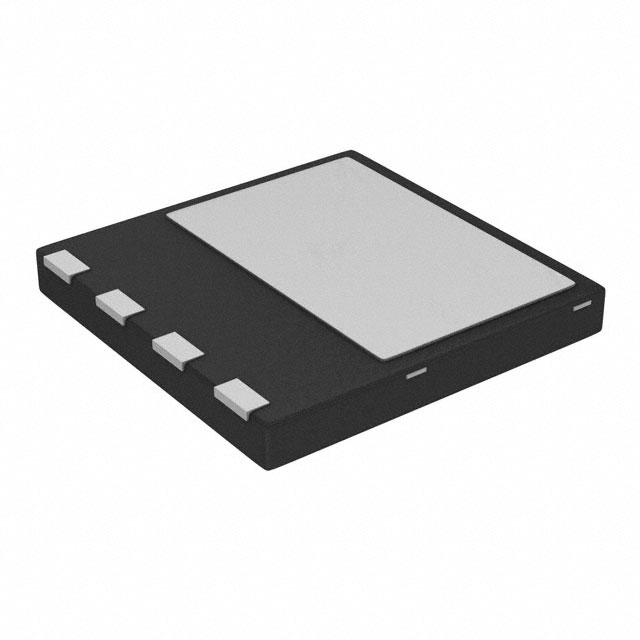

The device is packaged in a compact 4-PowerTSFN surface-mount package (PG-VSON-4), suitable for space-constrained designs. It is RoHS compliant and meets MSL level 1 requirements for moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.98 | $6.98 |
| 10+ | $4.70 | $4.70 |
| 100+ | $3.41 | $3.41 |
| 500+ | $3.21 | $3.21 |
| 1,000+ | $3.03 | $3.03 |
| 3,000+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 650V.
The continuous drain current is 21A at case temperature.
The maximum on-resistance is 99mOhm at 5.9A drain current and 10V gate-source voltage.
It is available in a 4-PowerTSFN surface-mount package (PG-VSON-4).
The operating junction temperature range is -40°C to 150°C.
It is listed as RoHS3 compliant, but this information is unverified.
The maximum gate charge is 45nC at 10V gate-source voltage.
