The IPL60R385CP is a 600V N-Channel CoolMOS CP power MOSFET from Infineon Technologies, designed for high efficiency in switching power supplies. It belongs to the CoolMOS CP series, which combines fast switching with low conduction losses, making it suitable for power density driven applications.
Key electrical specifications include a drain-source voltage of 600V (650V at Tjmax), continuous drain current of 9A (Tc), and pulsed current capability of 27A. The maximum on-resistance is 385mOhm at 5.2A and 10V gate drive. Typical gate charge is 17nC, and input capacitance is 790pF at 100V, contributing to low switching losses. The device also features a body diode with a di/dt rating of 400A/µs.

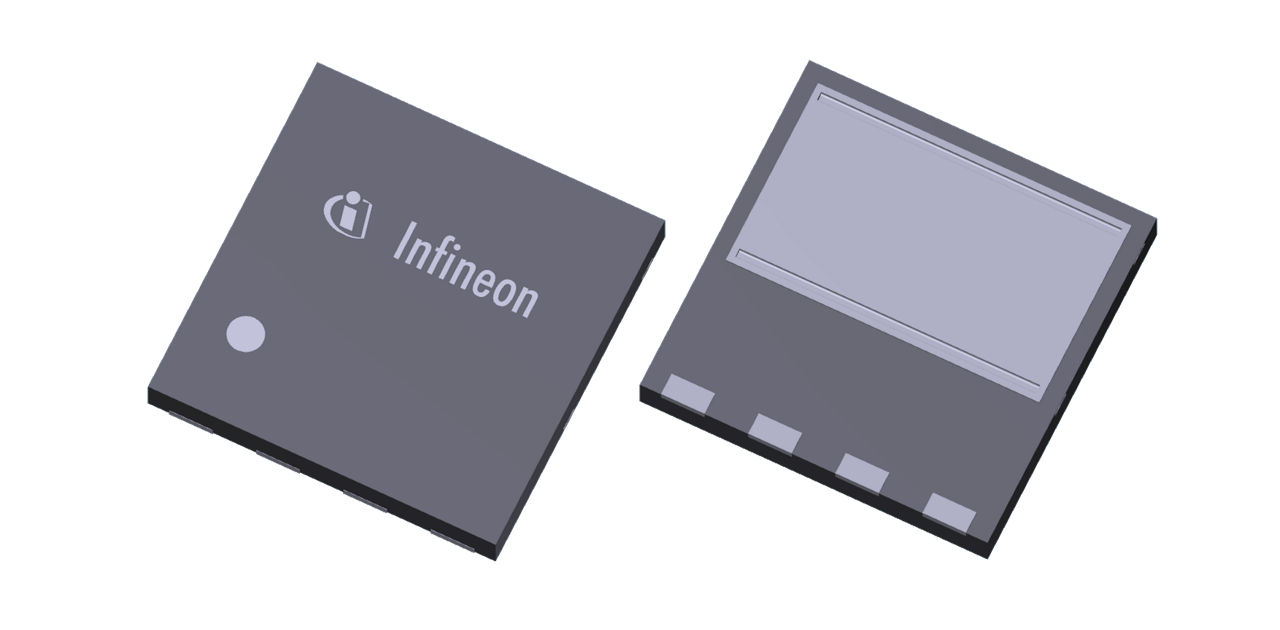

The IPL60R385CP is housed in a PG-VSON-4-1 surface mount package (ThinPAK 8x8), which offers a very small footprint of only 64mm² and a low profile of 1mm, compared to traditional D²PAK packages. This enables compact and lightweight designs. The package is leadless with low parasitic inductances.
Environmental compliance includes RoHS3 compliance with Pb-free plating and halogen-free materials. The device is qualified according to JEDEC standards (J-STD20 and JESD22) for server and adapter applications. Moisture sensitivity level is MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V (650V at junction temperature Tjmax).
PG-VSON-4 surface mount package, also known as ThinPAK 8x8.
-40°C to 150°C (junction temperature).
Yes, it is RoHS3 compliant with Pb-free plating and halogen free, as verified in the datasheet.
17 nC at 10V gate-source voltage.
385 mOhm at 5.2A drain current and 10V gate drive.
