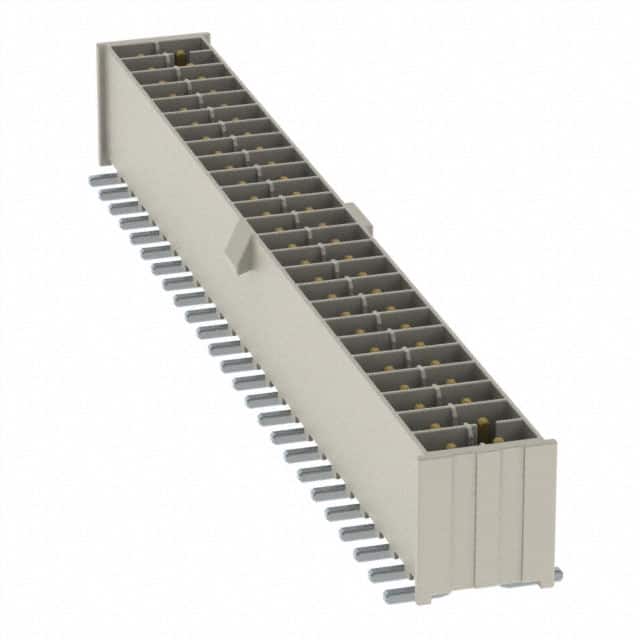

IPL1-125-02-L-D-K Samtec IPL1-125-02-L-D-K is a 50-position, 2.54mm pitch, surface mount male pin header with gold plating, shrouded, and locking ramp.
Mfr Part #:

IPL1-125-02-L-D-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPL1-125-02-L-D-K is a 50-position, 2.54mm pitch, surface mount male pin header with gold plating, shrouded, and locking ramp.
✓ Total Stock: 2 pcs
$ Price Range: $3.84 - $7.79

IPL1-125-02-L-D-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request 1836 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPL1-125-02-L-D-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

IPL1-125-02-L-D-K Description

Short technical summary and product information.

The Samtec IPL1-125-02-L-D-K is a 50-position, 2-row, 2.54mm pitch header connector designed for board-to-cable/wire applications. It features a surface mount (SMT) termination with solder leads, and a shrouded 4-wall design with locking ramp for secure mating. The contacts are made of phosphor bronze with a gold finish (10 µ" over 50 µ" Ni) providing reliable connectivity. The insulator is natural Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating, suitable for high-temperature processing. The connector operates over a temperature range of -55°C to +125°C and is rated for 675 VAC / 954 VDC. It is lead-free solderable and meets SMT lead coplanarity of 0.15 mm max for 11-25 positions per row. The IPL1 series mates with Samtec MMSD, MMSS, MMSDT, MMSST cable assemblies.

IPL1-125-02-L-D-K Quick Information

Product Type: Header, Male Pins
Series: IPL1
Canonical Name: Samtec Inc. IPL1-125-02-L-D-K Header, Male Pins, 50 Positions, 2.54mm Pitch, Surface Mount
Subcategory: Male Pins

IPL1-125-02-L-D-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPL1-125-02-L-D-K Estimated Pricing

Qty Low High
1+ $7.79 $7.79
8+ $6.94 $6.94
24+ $5.75 $5.75
56+ $5.62 $5.62
104+ $5.18 $5.18
256+ $4.71 $4.71
504+ $4.64 $4.64
1,000+ $4.21 $4.21
2,000+ $3.84 $3.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-125-02-L-D-K Features

  • 50 positions in 2 rows with 2.54mm pitch.
  • Surface mount termination with solder leads.
  • Gold contact finish for reliable performance.
  • Shrouded 4-wall design with locking ramp.
  • Operating temperature range -55°C to +125°C.

IPL1-125-02-L-D-K Applications

  • Ideal for board-to-cable/wire interconnect.
  • Used in industrial and commercial electronics.
  • Suitable for high-density signal routing.
  • Common in data communication equipment.

IPL1-125-02-L-D-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the IPL1-125-02-L-D-K have?

50 positions.

What is the pitch of this connector?

2.54mm (0.100").

What is the voltage rating?

675 VAC and 954 VDC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold (10 µ" over 50 µ" Ni).

What is the insulation material?

Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
