Mfr Part #:

IPL1-120-01-L-D-P

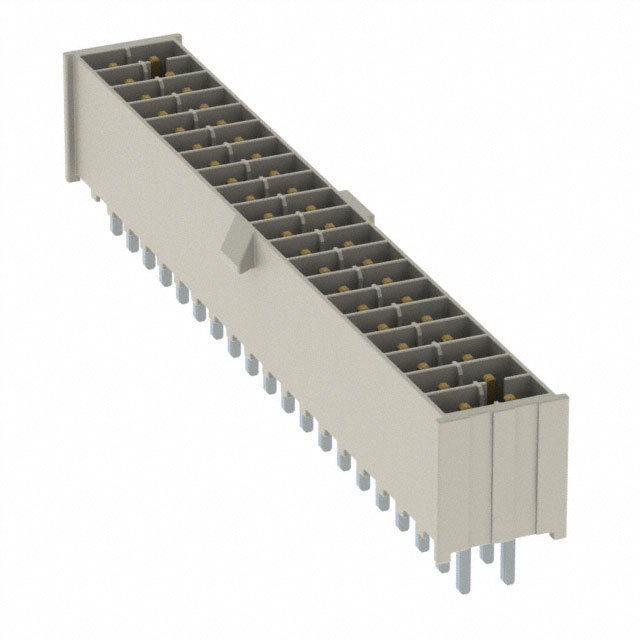

40-position, 2-row shrouded header with 2.54mm pitch. Through hole termination, rated 3.8A at 95°C, voltage 675VAC/954VDC.

✓ Total Stock: 255 pcs

$ Price Range: $4.27 - $7.76

IPL1-120-01-L-D-P Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	255 pcs On Request	255 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

IPL1-120-01-L-D-P Description

Short technical summary and product information.

The Samtec IPL1-120-01-L-D-P is a 40-position, 2-row shrouded header connector from the Mini Mate series. It features a 2.54mm (0.100 inch) pitch and is designed for board-to-cable/wire applications. The connector uses a through hole mounting style with solder termination.

The header has phosphor bronze square pins with tin plating (10.0µin thickness). It is shrouded on all four walls and features a locking ramp for secure mating. The insulation is made of liquid crystal polymer (LCP) with UL94 V-0 flammability rating, natural color. The operating temperature range is -55°C to 125°C.

Current rating is 3.8A at 95°C, with a voltage rating of 675VAC or 954VDC. The connector has 39 positions loaded out of 40 total positions. Row spacing is also 2.54mm.

The part is packaged in tubes with 11 pieces per tube. It is RoHS3 compliant, REACH unaffected, and has MSL level 1 (unlimited). Note: Compliance claims are unverified.

IPL1-120-01-L-D-P Quick Information

Product Type: Shrouded Header

Series: IPL1

Canonical Name: IPL1-120-01-L-D-P - 2.54mm Pitch, 40 Position, Through Hole, Shrouded Header, Male Pins

Subcategory: Shrouded Male Pin Header

IPL1-120-01-L-D-P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPL1-120-01-L-D-P Estimated Pricing

Qty	Low	High
1+	$7.76	$7.76
11+	$7.51	$7.51
22+	$6.62	$6.62
55+	$5.50	$5.50
110+	$5.43	$5.43
253+	$4.98	$4.98
506+	$4.63	$4.63
1,001+	$4.46	$4.46
2,002+	$4.27	$4.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-120-01-L-D-P Features

40-position, 2-row shrouded header with 2.54mm pitch.
Through hole mounting with solder termination.
Tin-plated phosphor bronze square pin contacts.
Rated for 3.8A at 95°C and 675VAC/954VDC.
Locking ramp fastening for secure mating.

IPL1-120-01-L-D-P Applications

Board to cable / wire interconnection applications.
Applications requiring secure latching in high vibration.
Use in industrial control and automation equipment.
Suitable for power distribution up to 3.8A per contact.

IPL1-120-01-L-D-P FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPL1-120-01-L-D-P have?

40 positions total with 39 positions loaded in 2 rows.

What is the pitch of the connector?

2.54mm (0.100 inch).

What is the current rating?

3.8A at 95°C.

What is the voltage rating?

675VAC and 954VDC.

What is the mounting type?

Through hole with solder termination.

What is the contact material and finish?

Phosphor bronze with tin plating, 10.0µin (0.25µm) thickness.

What is the operating temperature range?

-55°C to 125°C.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.46mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3.8A @ 95°C
Fastening Type	Locking Ramp
Halogen Free	Yes
Insulation Color	Natural
Insulation Height	8.13mm
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	39
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm
Row Spacing	2.54mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Voltage Rating	675VAC, 954VDC
