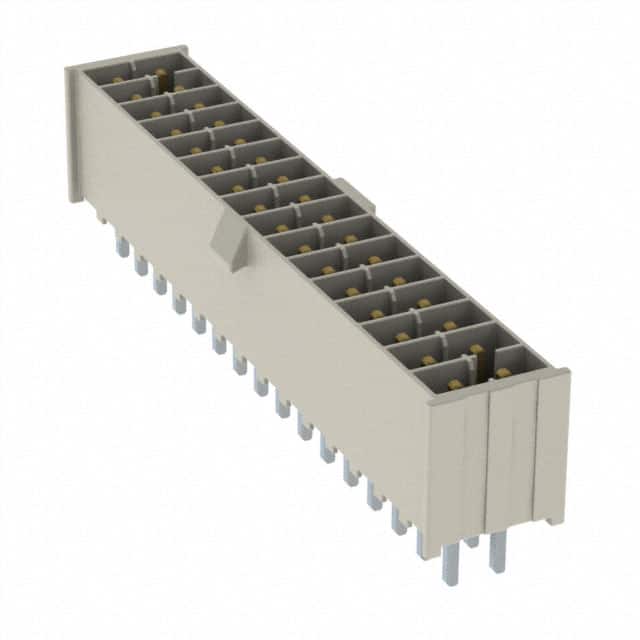

IPL1-116-01-L-D-K The IPL1-116-01-L-D-K is a 32-position, 2-row, 2.54mm pitch male pin header from Samtec. It features a shrouded 4-wall design with locking ramp, through-hole mounting, and tin-plated contacts.
Mfr Part #:

IPL1-116-01-L-D-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The IPL1-116-01-L-D-K is a 32-position, 2-row, 2.54mm pitch male pin header from Samtec. It features a shrouded 4-wall design with locking ramp, through-hole mounting, and tin-plated contacts.
✓ Total Stock: 200 pcs
$ Price Range: $1.96 - $3.51

IPL1-116-01-L-D-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPL1-116-01-L-D-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

IPL1-116-01-L-D-K Description

Short technical summary and product information.

The IPL1-116-01-L-D-K is a 32-position header from Samtec's IPL1 series. It features two rows of male pins with a 2.54mm pitch and row spacing. The connector is shrouded with a 4-wall design and includes a locking ramp for secure mating with compatible cable assemblies. Contacts are made of phosphor bronze with a 10µin tin finish and contact length of 5.46mm. The insulator is natural liquid crystal polymer (LCP) with UL94 V-0 flammability rating. This through-hole connector is solder-terminated and operates over -55°C to +125°C. It is rated for 675VAC/954VDC and current per pin ranging from 2.1A to 4.8A depending on wire gauge (20-30 AWG). The part is RoHS3 compliant (unverified) and lead-free solderable.

IPL1-116-01-L-D-K Quick Information

Product Type: Header, Male Pins
Series: IPL1
Canonical Name: Header, Male Pins, 32 Positions, 2.54mm Pitch, Through Hole, Shrouded, Locking Ramp, Natural LCP
Subcategory: Male Pins

IPL1-116-01-L-D-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPL1-116-01-L-D-K Estimated Pricing

Qty Low High
1+ $3.51 $3.51
10+ $3.22 $3.22
52+ $3.01 $3.01
104+ $2.93 $2.93
507+ $2.61 $2.61
1,001+ $2.39 $2.39
2,509+ $2.21 $2.21
5,005+ $1.96 $1.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-116-01-L-D-K Features

  • 32 positions in 2 rows at 2.54mm pitch.
  • Shrouded 4-wall design with locking ramp.
  • Through-hole mounting with solder termination.
  • Tin-plated phosphor bronze contacts.
  • Rated for 675VAC and 954VDC.

IPL1-116-01-L-D-K Applications

  • Board-to-cable/wire interconnection applications.
  • Ideal for industrial control systems.
  • Used in data communication equipment.
  • Suitable for test and measurement devices.

IPL1-116-01-L-D-K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the IPL1-116-01-L-D-K?

2.54mm (0.100").

How many positions does the connector have?

32 positions in 2 rows.

What is the current rating per pin?

Up to 4.8A on 20 AWG wire (2 pins powered), decreasing to 2.1A on 30 AWG.

What is the voltage rating?

675 VAC and 954 VDC.

What type of mounting does it use?

Through hole with solder termination.

What is the operating temperature range?

-55°C to +125°C.

Is the connector shrouded?

Yes, 4-wall shrouded with locking ramp.
