Mfr Part #:

IPL1-115-01-L-D-RA-K

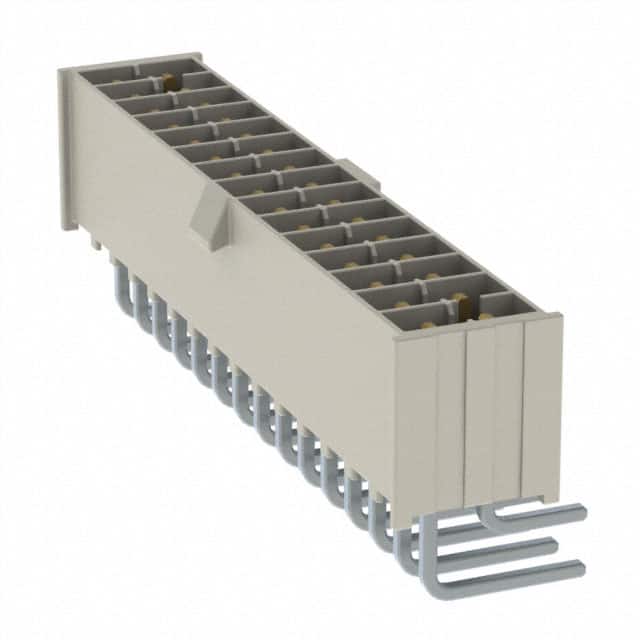

Samtec IPL1-115-01-L-D-RA-K is a 30-position, 2.54mm pitch header with male pins, through hole right angle mounting, and shrouded design. It features gold-plated contacts and a locking ramp for secure mating.

✓ Total Stock: 8 pcs

$ Price Range: $2.35 - $4.27

IPL1-115-01-L-D-RA-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	12+	On Request	On Request

IPL1-115-01-L-D-RA-K Description

Short technical summary and product information.

The Samtec IPL1-115-01-L-D-RA-K is a rectangular connector header from the IPL1 series. It features 30 positions arranged in 2 rows with a 2.54mm pitch and row spacing. The connector is shrouded with a 4-wall design and includes a locking ramp for secure fastening. It is designed for board-to-cable/wire applications. The header uses through hole, right angle mounting with solder termination. Contacts are made of phosphor bronze with 10 µ" gold plating on the contact area and matte tin on the tail. The insulator is natural liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Operating temperature range is -55°C to +125°C. Voltage rating is 675 VAC / 954 VDC. Current rating is 4.8 A per pin with 20 AWG wire (2 pins powered). The part is lead-free solderable. This connector is suitable for applications requiring a reliable, polarized connection with keying option.

IPL1-115-01-L-D-RA-K Quick Information

Product Type: Header, Male Pins

Series: IPL1

Canonical Name: Samtec IPL1-115-01-L-D-RA-K Header, Male Pins, 30 Position, 2.54mm Pitch, Right Angle, Through Hole

Subcategory: Male Pins

IPL1-115-01-L-D-RA-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable

IPL1-115-01-L-D-RA-K Estimated Pricing

Qty	Low	High
1+	$4.27	$4.27
10+	$3.88	$3.88
56+	$3.65	$3.65
112+	$3.31	$3.31
252+	$3.17	$3.17
1,008+	$2.91	$2.91
2,506+	$2.68	$2.68
5,012+	$2.35	$2.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-115-01-L-D-RA-K Features

30 positions in 2 rows with 2.54mm pitch.
Shrouded 4-wall design with locking ramp.
Gold-plated phosphor bronze contacts.
Through hole right angle mounting.
Rated for 4.8A per pin and 675VAC/954VDC.

IPL1-115-01-L-D-RA-K Applications

Board-to-cable/wire connections.
Applications requiring a shrouded header with locking ramp.
Signal and power distribution up to 4.8A per pin.

IPL1-115-01-L-D-RA-K FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPL1-115-01-L-D-RA-K have?

30 positions in 2 rows.

What is the pitch of this connector?

2.54mm (0.100")

What is the current rating per pin?

4.8 A per pin with 20 AWG wire (2 pins powered).

What is the voltage rating?

675 VAC / 954 VDC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

10 µ" gold on contact area, matte tin on tail.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.46mm (0.215")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4.8 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	7.37mm (0.290")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	Through-hole
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Present
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Voltage Rating	675 VAC, 954 VDC
