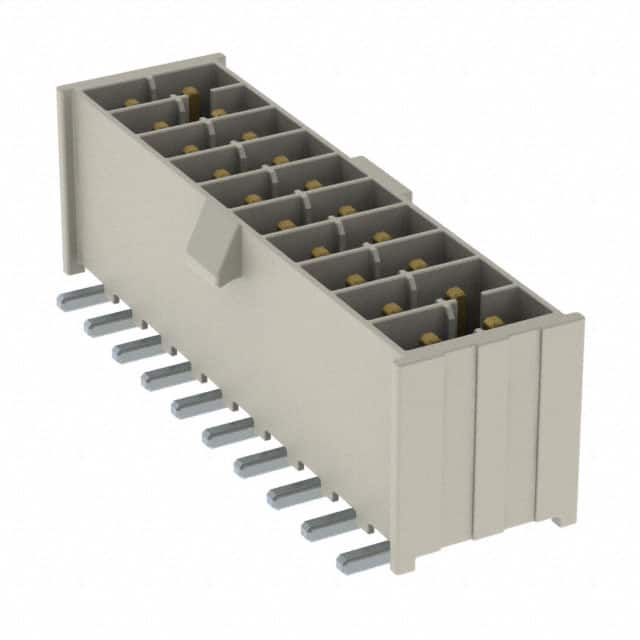

The Samtec IPL1-110-02-L-D-K is a 20-position, dual-row surface mount shrouded header from the IPL1 series. It features a 2.54mm pitch and row spacing, with all positions loaded. The connector is designed for board-to-cable/wire applications and mates with Samtec MMSD, MMSS, MMSDT, and MMSST cable assemblies.
The header is shrouded on all four walls and includes a locking ramp for secure mating. Contacts are made of phosphor bronze with a tin finish (0.25µm thickness) and have a square shape. The insulator is natural liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This surface mount version (lead style -02) is solder terminated and supports tape and reel packaging with a polyimide pick-and-place pad. The operating temperature range is -55°C to +125°C, and the voltage rating is 675 VAC / 954 VDC. The part is keyed for polarization (K option).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.02 | $4.02 |
| 21+ | $3.80 | $3.80 |
| 42+ | $3.24 | $3.24 |
| 105+ | $2.80 | $2.80 |
| 504+ | $2.59 | $2.59 |
| 1,008+ | $2.28 | $2.28 |
| 2,520+ | $2.02 | $2.02 |
| 5,019+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54 mm (0.100 in).
It has 20 positions arranged in 2 rows, all positions loaded.
Surface mount (SMD) with solder termination.
675 VAC / 954 VDC.
-55°C to +125°C.
RoHS3 compliant (unverified).
Tin with a thickness of 0.25 µm (10.0 µin).
