| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conflict Minerals | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Max) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

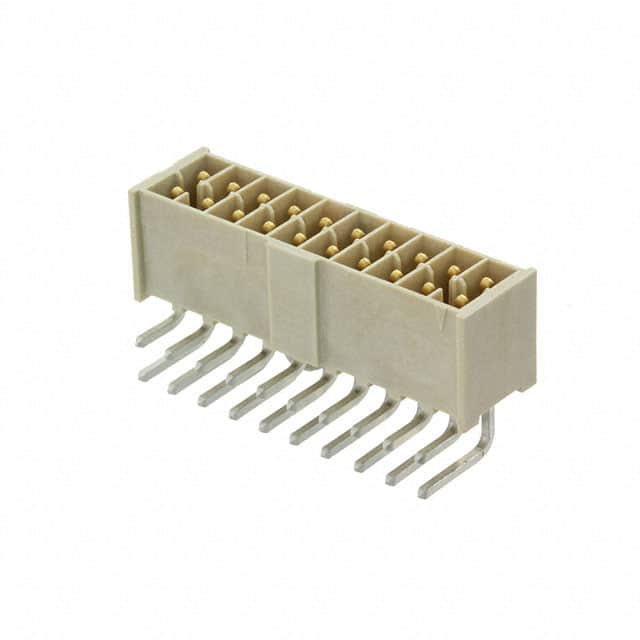

The Samtec IPL1-110-01-L-D-RA-K is a 20-position, 2.54mm pitch header designed for board-to-cable/wire interconnections. This male pin header features a right-angle, through-hole mounting style and a shrouded 4-wall design with a locking ramp for secure mating. The insulator is made of natural Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating, ensuring reliable performance in demanding environments.
Electrical specifications include a voltage rating of 675VAC/954VDC and a current rating of 4.8A per pin when two pins are powered (derating applies for other wire gauges). The contacts are made of phosphor bronze with a gold finish (10 µin) over nickel, providing excellent conductivity and corrosion resistance. The operating temperature range spans from -55°C to 125°C, making it suitable for industrial and automotive applications.
With a 2.54mm pitch and 2.54mm row spacing, the header supports standard ribbon cable or discrete wire connectors. The part is lead-free solderable and RoHS compliant (unverified). It is designed for soldering termination and is available in tape and reel packaging for automated assembly. This header is ideal for applications requiring a robust, keyed connection with high pin count.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.25 | $3.25 |
| 42+ | $2.80 | $2.80 |
| 105+ | $2.52 | $2.52 |
| 252+ | $2.42 | $2.42 |
| 1,008+ | $2.22 | $2.22 |
| 2,520+ | $2.04 | $2.04 |
| 5,019+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
4.8A per pin when two pins are powered (with 20 AWG wire). Rating varies with wire gauge.
675VAC and 954VDC.
Through-hole, right angle.
-55°C to 125°C.
Phosphor bronze contacts with gold finish (10 µin) over nickel.
