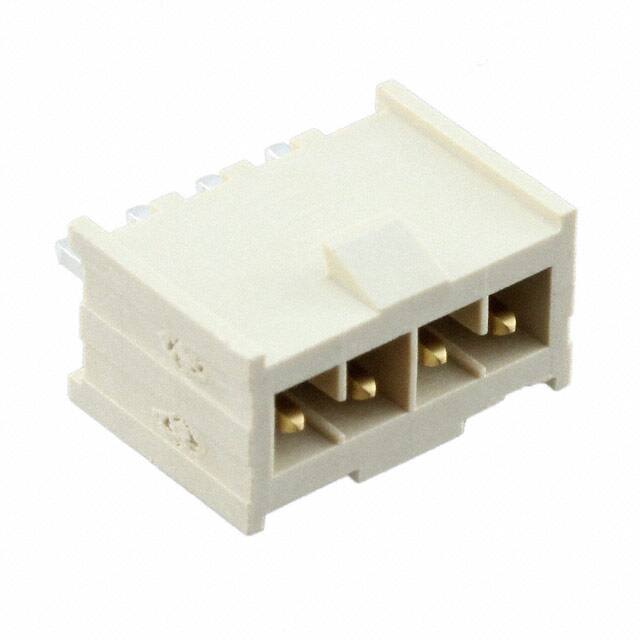

IPL1-104-01-L-S-K Samtec IPL1-104-01-L-S-K is a 4-position single row through-hole shrouded header with a 2.54mm pitch. It features tin-plated phosphor bronze contacts and a natural LCP insulator.
Mfr Part #:

IPL1-104-01-L-S-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPL1-104-01-L-S-K is a 4-position single row through-hole shrouded header with a 2.54mm pitch. It features tin-plated phosphor bronze contacts and a natural LCP insulator.
✓ Total Stock: 207 pcs
$ Price Range: $0.87 - $2.37

IPL1-104-01-L-S-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
207 pcs
On Request
207 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPL1-104-01-L-S-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Max)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

IPL1-104-01-L-S-K Description

Short technical summary and product information.

The Samtec IPL1-104-01-L-S-K is a 4-position, single row, through-hole shrouded header from the IPL1 series. It features a 2.54mm (0.100") pitch and a shrouded 4-wall design with a locking ramp fastening system for secure mating with compatible cable assemblies like the MMSD and MMSS series.



The header uses phosphor bronze contacts with a 10.0µin (0.25µm) tin plating over 50µin nickel underplate. The insulator is molded from natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +125°C.



Electrically, the connector is rated for 675VAC/954VDC and can carry up to 4.8A per pin when using 20 AWG wire with 2 pins powered. The through-hole solder termination ensures a reliable mechanical and electrical connection to the PCB.

IPL1-104-01-L-S-K Quick Information

Product Type: Shrouded Header
Series: IPL1
Canonical Name: Samtec IPL1 Series 4 Position Single Row Through-Hole Shrouded Header, 2.54mm Pitch
Subcategory: Shrouded Header

IPL1-104-01-L-S-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPL1-104-01-L-S-K Estimated Pricing

Qty Low High
1+ $2.37 $2.37
49+ $1.92 $1.92
98+ $1.33 $1.33
539+ $1.15 $1.15
1,029+ $1.12 $1.12
5,047+ $0.99 $0.99
10,045+ $0.87 $0.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-104-01-L-S-K Features

  • 4-position single row through-hole header.
  • 2.54mm (0.100") pitch for compact designs.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 4.8A maximum current per pin.
  • Operating temperature range -55°C to +125°C.

IPL1-104-01-L-S-K Applications

  • Board-to-wire connections in industrial equipment.
  • Cable-to-board interfaces for data communication.
  • Power and signal distribution in control systems.
  • Reliable interconnects in harsh environments.

IPL1-104-01-L-S-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the IPL1-104-01-L-S-K have?

It has 4 positions in a single row.

What is the pitch of this connector?

The pitch is 2.54mm (0.100").

What is the maximum current rating?

The maximum current rating is 4.8A per pin when using 20 AWG wire with 2 pins powered.

What is the voltage rating?

The voltage rating is 675VAC and 954VDC.

What is the mounting type?

This header uses through-hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the contact finish?

The contact finish is tin with a thickness of 10.0µin (0.25µm).
