Mfr Part #:

IPL1-104-01-L-D-K

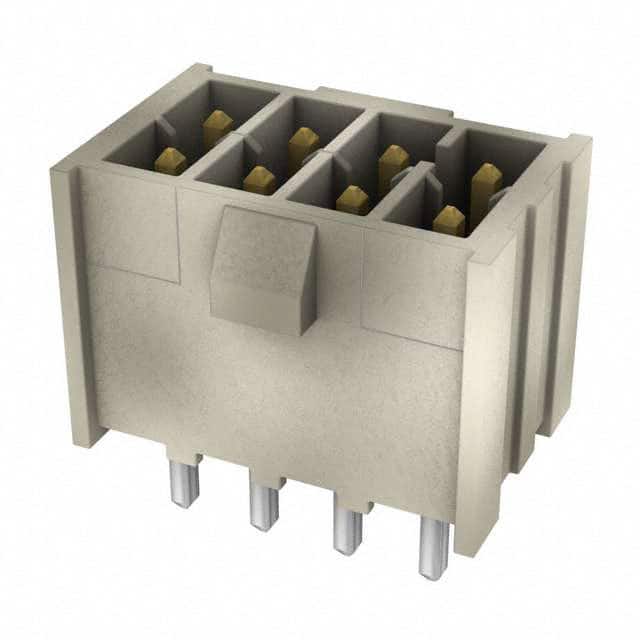

Samtec IPL1-104-01-L-D-K is a 8-position, 2-row, through-hole header with 2.54mm pitch. It features gold contact finish and shrouded design with locking ramp.

✓ Total Stock: 2 pcs

$ Price Range: $1.37 - $2.30

IPL1-104-01-L-D-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

IPL1-104-01-L-D-K Description

Short technical summary and product information.

This is a Samtec IPL1 series header, male pins, 8 positions in 2 rows, 2.54mm pitch. It is a board-to-cable/wire connector with through-hole mounting and solder termination. The insulator is natural LCP with UL94 V-0 flammability rating.

Electrical ratings: voltage rating 675VAC/954VDC, current rating up to 4.8A per pin (with 20 AWG wire, 2 pins powered). Operating temperature range -55°C to +125°C. Contact material is phosphor bronze with 10µ" gold finish on contact area and matte tin on tail.

The connector features a shrouded 4-wall design with locking ramp for secure mating. It is keyed for polarization. The part number suffix -K indicates keyed polarization. This header mates with Samtec MMSD, MMSS, MMSDT, MMSST cable assemblies.

Packaging: through-hole lead style. The part is lead-free solderable. RoHS3 compliant (unverified), REACH unaffected (unverified), MSL 1 unlimited (unverified). Note: compliance data is low confidence.

IPL1-104-01-L-D-K Quick Information

Product Type: Header, Male Pins

Series: IPL1

Canonical Name: Samtec IPL1 Series Header, Male Pins, 8 Positions, 2.54mm Pitch, Through Hole, Gold Contact Finish

Subcategory: Male Pins

IPL1-104-01-L-D-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

IPL1-104-01-L-D-K Estimated Pricing

Qty	Low	High
1+	$2.30	$2.30
98+	$1.94	$1.94
294+	$1.70	$1.70
539+	$1.60	$1.60
5,047+	$1.37	$1.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-104-01-L-D-K Features

8-position, 2-row through-hole header.
2.54mm pitch with gold contact finish.
Shrouded 4-wall design with locking ramp.
Rated for 4.8A per pin maximum.
Keyed polarization for secure mating.

IPL1-104-01-L-D-K Applications

Board-to-cable wire connections in industrial systems.
Ideal for discrete wire termination applications.
Used in test and measurement equipment.
Suitable for automotive and aerospace electronics.

IPL1-104-01-L-D-K FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPL1-104-01-L-D-K have?

8 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating per pin?

Up to 4.8A per pin with 20 AWG wire (2 pins powered).

What is the voltage rating?

675VAC / 954VDC.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold, 10µ" (0.25µm) on contact area.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
AEC Qualified	No
Automotive Grade	No
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.46mm (0.215")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Industrial Grade	No
Insulation Color	Natural
Insulation Height	8.13mm (0.320")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	Through-hole
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Voltage Rating	675VAC, 954VDC
