Mfr Part #:

IPL1-103-01-L-D-RA-K

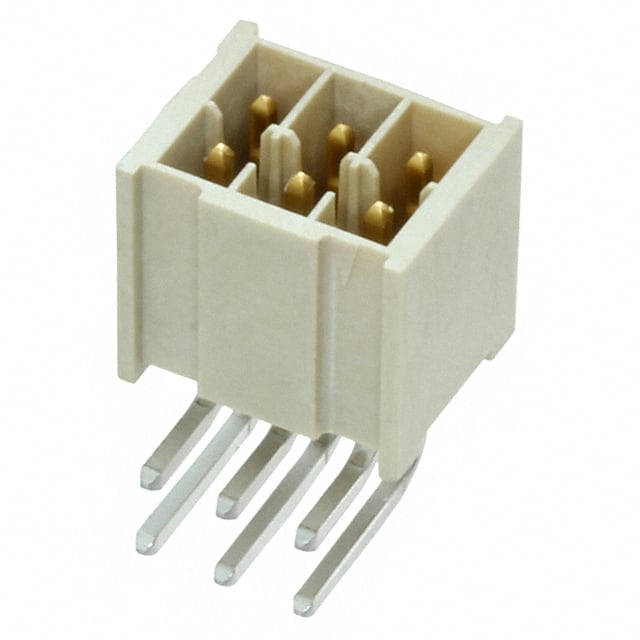

This is a 6-position, 2.54mm pitch, right-angle through-hole male pin header from Samtec's IPL1 series. It features a shrouded 4-wall design with locking ramp for secure cable connection.

✓ Total Stock: 3,992 pcs

$ Price Range: $1.53 - $2.67

IPL1-103-01-L-D-RA-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	3,992 pcs On Request	3992 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IPL1-103-01-L-D-RA-K Description

Short technical summary and product information.

The Samtec IPL1-103-01-L-D-RA-K is a 6-position, 2.54mm pitch header connector designed for board-to-cable/wire applications. It features a through-hole, right-angle mounting style with a shrouded 4-wall housing for robust mating. The header uses male square pins with phosphor bronze contacts plated with 10µin (0.25µm) tin over nickel. The insulation is natural liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +125°C. The voltage rating is 675 VAC / 954 VDC, and the current rating is 4.8 A per pin when powered with 2 pins and 20 AWG wire. The connector includes a locking ramp for secure fastening. It is RoHS3 compliant and has an MSL of 1. This part is part of the IPL1 series that mates with MMSD, MMSS, MMSDT, MMSST cable assemblies.

IPL1-103-01-L-D-RA-K Quick Information

Product Type: Header, Male Pins

Series: IPL1

Canonical Name: Connector Header, 6 Position, 2.54mm Pitch, Through Hole Right Angle, Male Pin, Shrouded

Subcategory: Male Pins

IPL1-103-01-L-D-RA-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPL1-103-01-L-D-RA-K Estimated Pricing

Qty	Low	High
1+	$2.67	$2.67
100+	$2.59	$2.59
252+	$2.18	$2.18
504+	$1.91	$1.91
1,008+	$1.79	$1.79
5,040+	$1.53	$1.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-103-01-L-D-RA-K Features

6-position, 2-row male pin header.
2.54mm pitch and row spacing.
Right-angle through-hole mounting.
Shrouded 4-wall housing with locking ramp.
Rated for 4.8A per pin (20 AWG).

IPL1-103-01-L-D-RA-K Applications

Board-to-cable/wire connections.
Used in industrial control systems.
Suitable for data communication equipment.
Ideal for test and measurement applications.

IPL1-103-01-L-D-RA-K FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

6 positions, 2 rows.

What is the pitch?

2.54mm (0.100")

What is the current rating?

4.8A per pin when powered with 2 pins and 20 AWG wire.

What is the voltage rating?

675 VAC / 954 VDC

What is the mounting type?

Through-hole, right angle

What is the operating temperature range?

-55°C to +125°C

What is the contact finish?

Tin, 10µin (0.25µm) over nickel.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.46mm (0.215")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4.8 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	7.37mm (0.290")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Lead Style	Right-angle
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Voltage Rating	675 VAC, 954 VDC
