Mfr Part #:

IPL1-103-01-L-D-K

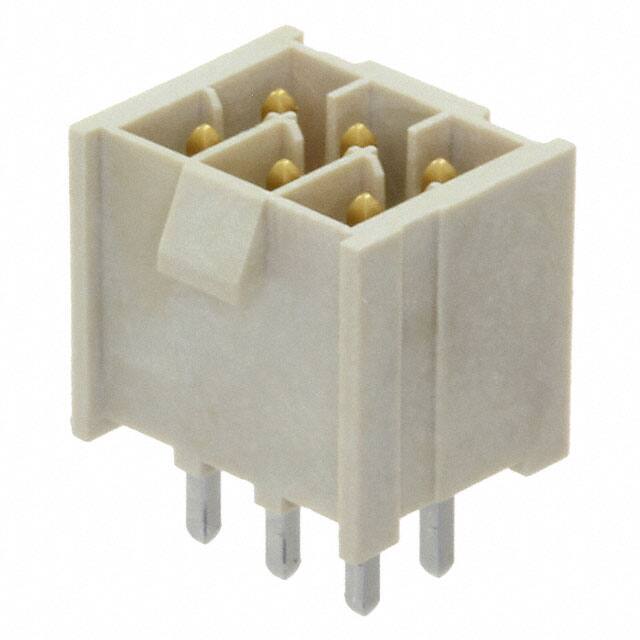

Samtec IPL1 series 6-position shrouded header with male pins, 2.54mm pitch, through-hole termination, gold mating contact finish.

✓ Total Stock: 9 pcs

$ Price Range: $1.08 - $2.22

IPL1-103-01-L-D-K Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

IPL1-103-01-L-D-K Description

Short technical summary and product information.

The Samtec IPL1-103-01-L-D-K is a 6-position, double-row shrouded header from the IPL1 series. It features male square pins with a 2.54mm pitch and row spacing, designed for board-to-cable/wire applications. The connector is through-hole mounted with solder termination.

The mating contacts are plated with 10µ" (0.25µm) gold over 50µ" nickel, while the termination tails have a matte tin finish. The insulator is natural liquid crystal polymer (LCP) rated UL94 V-0. The header includes a locking ramp fastening system and keyed polarization for secure mating.

Rated for 675 VAC / 954 VDC and an operating temperature range of -55°C to +125°C, this connector is suitable for demanding environments. It mates with Samtec MMSD, MMSS, MMSDT, and MMSST discrete wire cable assemblies.

IPL1-103-01-L-D-K Quick Information

Product Type: Rectangular Connector - Header Male Pins

Series: IPL1

Canonical Name: Samtec IPL1 series 6-position 2.54mm pitch shrouded header, male pin, through-hole, keyed polarization

Subcategory: Headers, Male Pins

IPL1-103-01-L-D-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPL1-103-01-L-D-K Estimated Pricing

Qty	Low	High
1+	$2.22	$2.22
100+	$1.86	$1.86
252+	$1.62	$1.62
504+	$1.53	$1.53
5,040+	$1.32	$1.32
10,017+	$1.08	$1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-103-01-L-D-K Features

6-position double-row shrouded header.
2.54mm pitch and row spacing.
Gold-plated phosphor bronze contacts.
Rated -55°C to +125°C operating range.
Keyed polarization with locking ramp fastening.

IPL1-103-01-L-D-K Applications

Board-to-cable/wire interconnect applications.
Industrial control and automation systems.
Test and measurement equipment wiring.
Data communication and networking hardware.

IPL1-103-01-L-D-K FAQs

5 frequently asked questions generated from this part’s specifications.

How many positions does the IPL1-103-01-L-D-K have?

6 positions arranged in 2 rows.

What is the pitch of this connector?

2.54mm (0.100") pitch.

What is the voltage rating of this connector?

675 VAC / 954 VDC.

What is the mounting type?

Through-hole.

What is the operating temperature range?

-55°C to +125°C.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish - Mating	10 µ" (0.25 µm) Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.46mm (0.215")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13mm (0.320")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	Through Hole
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Voltage Rating	675VAC, 954VDC
