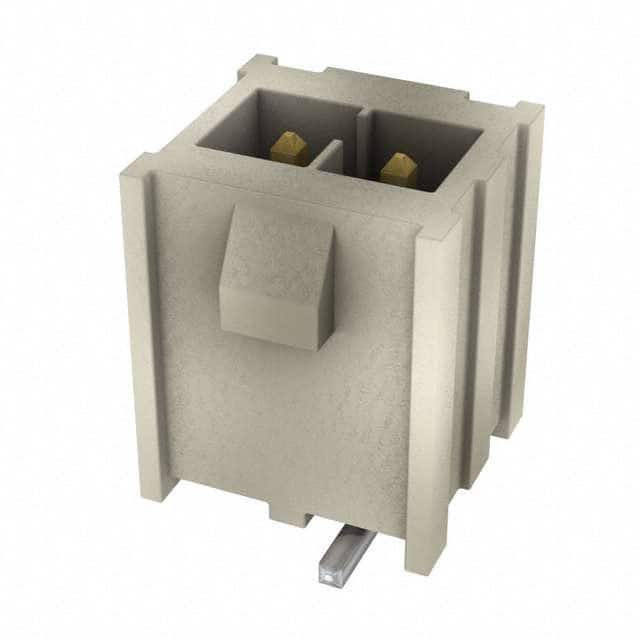

IPL1-102-02-L-S-K Samtec IPL1-102-02-L-S-K is a 2-position surface mount shrouded header with 2.54mm pitch, gold-plated contacts, and locking ramp fastening.
Mfr Part #:

IPL1-102-02-L-S-K

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPL1-102-02-L-S-K is a 2-position surface mount shrouded header with 2.54mm pitch, gold-plated contacts, and locking ramp fastening.
✓ Total Stock: 2,433 pcs
$ Price Range: $0.96 - $2.43

IPL1-102-02-L-S-K Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,333 pcs
On Request
2333 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPL1-102-02-L-S-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

IPL1-102-02-L-S-K Description

Short technical summary and product information.

The Samtec IPL1-102-02-L-S-K is a 2-position, single row, surface mount header from the IPL1 series. It features a shrouded 4-wall design with a locking ramp for secure mating with compatible cable assemblies such as the MMSD and MMSS series. The insulator is molded from natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.



The part number specifies a -02 lead style for surface mount termination, -L plating (10 µ" gold on the contact area and matte tin on the solder tail), and -K keyed polarization. The square phosphor bronze contacts are rated for 675 VAC/954 VDC and operate over a temperature range of -55°C to +125°C. This header is lead-free solderable and comes with a polyimide pick & place pad when ordered in tape and reel packaging (optional -TR suffix).

IPL1-102-02-L-S-K Quick Information

Product Type: Header, Male Pins
Series: IPL1
Canonical Name: Samtec IPL1 Series 2 Position Single Row Surface Mount Shrouded Header, Gold Plated Contacts
Subcategory: Rectangular Connectors - Headers

IPL1-102-02-L-S-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPL1-102-02-L-S-K Estimated Pricing

Qty Low High
1+ $2.43 $2.43
50+ $2.06 $2.06
85+ $1.55 $1.55
1,020+ $1.38 $1.38
2,040+ $1.21 $1.21
5,015+ $1.07 $1.07
10,030+ $0.96 $0.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-102-02-L-S-K Features

  • 2.54mm pitch SMT shrouded header.
  • Gold flash on mating contacts.
  • Shrouded 4-wall with locking ramp.
  • Operating temp -55°C to +125°C.
  • UL94 V-0 rated LCP insulator.

IPL1-102-02-L-S-K Applications

  • Board-to-wire discrete wire terminal.
  • Cable mating with MMSD/MMSS series.
  • Industrial control and automation.
  • Test and measurement equipment.

IPL1-102-02-L-S-K FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the IPL1-102-02-L-S-K have?

This header has 2 positions in a single row.

What is the pitch of this connector?

The pitch is 2.54mm (0.100").

What is the voltage rating of the IPL1-102-02-L-S-K?

It is rated for 675 VAC and 954 VDC.

What is the mounting type?

Surface mount (SMD) with solder termination.

What is the operating temperature range?

-55°C to +125°C.
