| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

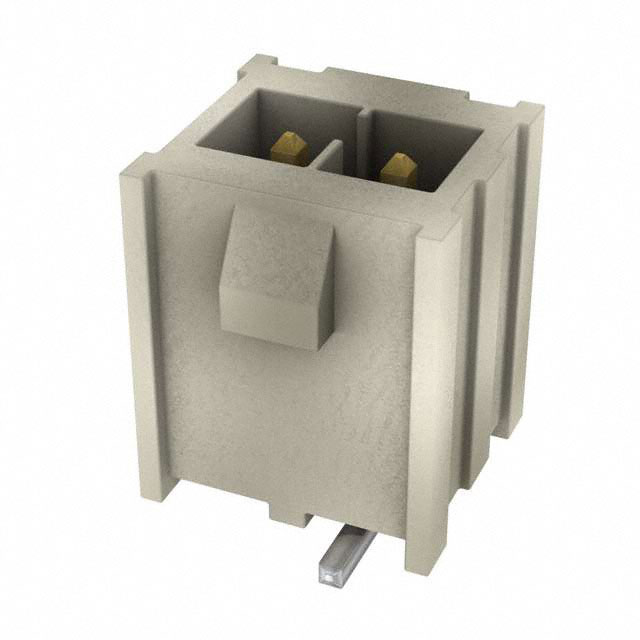

The Samtec IPL1-102-02-F-S-K is a 2-position, single-row surface mount header designed for board-to-cable/wire applications. It features a 2.54mm pitch and a shrouded 4-wall design that provides mechanical protection and alignment during mating. The locking ramp fastening ensures a secure connection, making it suitable for applications where vibration resistance is important.
The header is constructed with a liquid crystal polymer (LCP) insulator rated UL94 V-0 for flammability, and phosphor bronze contacts with a tin finish (0.076µm thickness). The insulation height is 8.13mm and the contact length is 5.46mm. Electrical ratings include 675VAC and 954VDC, with an operating temperature range of -55°C to 125°C.
This component is surface mount (SMD) with solder termination, suitable for automated assembly processes. The natural insulation color and square male pin contacts are standard for this connector family. The part is RoHS3 compliant (unverified), REACH unaffected (unverified), and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
| 50+ | $1.90 | $1.90 |
| 85+ | $1.89 | $1.89 |
| 510+ | $1.33 | $1.33 |
| 1,020+ | $1.28 | $1.28 |
| 2,040+ | $1.13 | $1.13 |
| 5,015+ | $1.08 | $1.08 |
| 10,030+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.54mm (0.100 inch).
675VAC and 954VDC.
Surface mount (SMD).
-55°C to 125°C.
Tin with 0.076µm thickness.
