Mfr Part #:

IPL1-102-01-S-D-RA-K

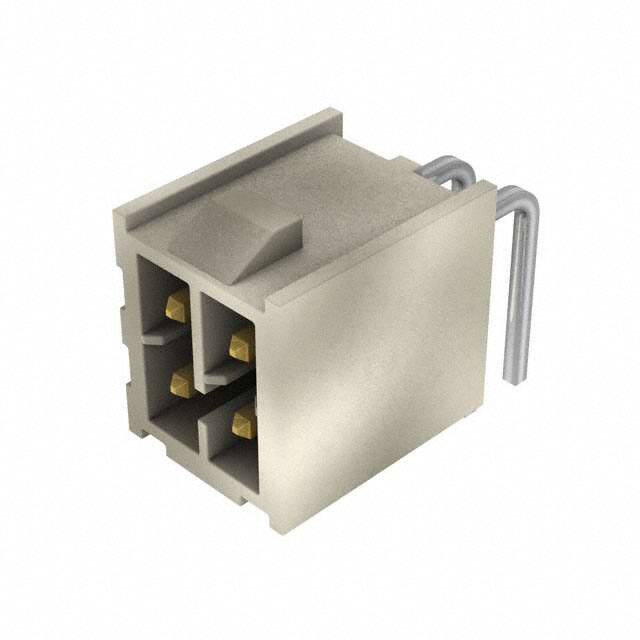

Samtec IPL1 series 4 position 2.54mm pitch right angle shrouded header with male pins. Through hole mounting, solder termination, rated 4.8A per pin and 675VAC/954VDC.

✓ Total Stock: 24 pcs

$ Price Range: $2.47 - $4.67

IPL1-102-01-S-D-RA-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	24 pcs On Request	24 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

IPL1-102-01-S-D-RA-K Description

Short technical summary and product information.

The Samtec IPL1-102-01-S-D-RA-K is a 4 position, 2 row, 2.54mm pitch right angle shrouded header from the IPL1 series. It features male square pins with tin plating over phosphor bronze, providing reliable board-to-wire connections. The header is shrouded with a 4-wall design and includes a locking ramp for secure mating, along with keyed polarization to prevent misalignment.

Electrical ratings include 4.8A per pin (with 2 pins powered using 20 AWG wire) and a voltage rating of 675VAC/954VDC. The insulator is made of natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C.

Mounting is through hole, right angle with solder termination. The contact finish thickness is 30.0µin (0.76µm) tin. This header is designed for use with Samtec MMSD series cable mates and is suitable for industrial and high-vibration applications.

IPL1-102-01-S-D-RA-K Quick Information

Product Type: Header, Male Pins

Series: IPL1

Canonical Name: Samtec IPL1 Series 4 Position 2.54mm Pitch Right Angle Shrouded Header, Male Pins

Subcategory: Shrouded Header

IPL1-102-01-S-D-RA-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPL1-102-01-S-D-RA-K Estimated Pricing

Qty	Low	High
1+	$4.67	$4.67
25+	$4.07	$4.07
50+	$3.69	$3.69
85+	$3.55	$3.55
510+	$3.18	$3.18
1,020+	$3.00	$3.00
2,550+	$2.47	$2.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-102-01-S-D-RA-K Features

4 position 2.54mm pitch header.
Right angle through hole mounting.
Shrouded with locking ramp.
Keyed polarization for secure mating.
Rated 4.8A per pin at 20 AWG.

IPL1-102-01-S-D-RA-K Applications

Board-to-wire connections in industrial equipment.
Used in cable assemblies with MMSD series mates.
Suitable for high vibration environments.
Ideal for compact right angle designs.

IPL1-102-01-S-D-RA-K FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

4 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

4.8A per pin with 2 pins powered using 20 AWG wire.

What is the voltage rating?

675VAC and 954VDC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 125°C.

Is the header shrouded?

Yes, shrouded with 4 walls and locking ramp.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	5.46mm (0.215")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4.8 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	7.37mm (0.290")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Lead Style	Through Hole
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Polarization	Keyed
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Solder
Termination Style	Solder
Voltage Rating	675VAC, 954VDC
