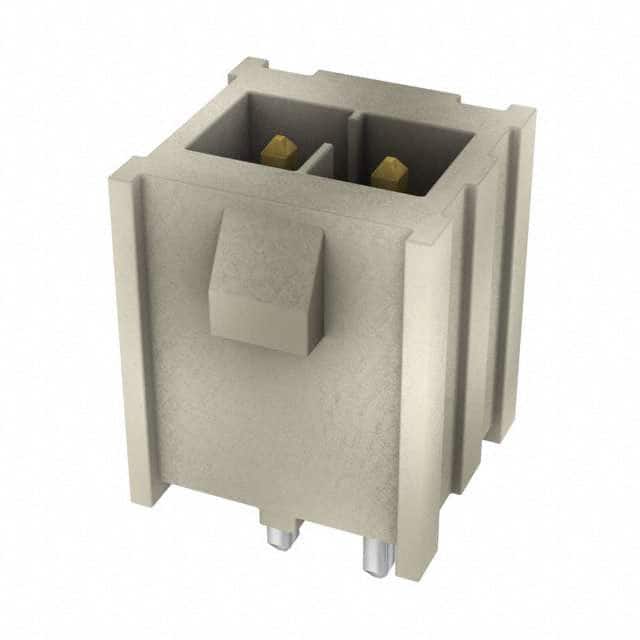

The Samtec IPL1-102-01-L-S-K is a 2-position, single row, shrouded header from the IPL1 series. It features a 2.54mm pitch and through hole solder termination, making it suitable for board-to-cable/wire applications. The connector is keyed for polarization to ensure correct mating.
The header is constructed with a natural Liquid Crystal Polymer (LCP) insulator and phosphor bronze contacts with a 10 µ" gold plating on the contact area and matte tin on the tail. It is rated for 4.8A per pin (with 2 pins powered and 20 AWG wire) and can withstand voltages up to 675 VAC or 954 VDC. The operating temperature range is -55°C to +125°C, and the insulation material has a UL94 V-0 flammability rating.
The part is designed for reliable connections in various electronic assemblies, offering a locking ramp fastening type for secure mating. The through hole mounting provides robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
| 50+ | $1.78 | $1.78 |
| 85+ | $1.19 | $1.19 |
| 510+ | $1.04 | $1.04 |
| 1,020+ | $0.89 | $0.89 |
| 10,030+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions in a single row, with all positions loaded.
The pitch is 2.54mm (0.100").
The current rating is 4.8A per pin, with 2 pins powered and 20 AWG wire.
The voltage rating is 675 VAC and 954 VDC.
It is a through hole mounting type with solder termination.
The operating temperature range is -55°C to +125°C.
Yes, it features keyed polarization for correct mating orientation.
