IPL1-102-01-L-D-RA-K Samtec IPL1-102-01-L-D-RA-K is a 4-position, 2.54mm pitch, right-angle shrouded header with male pins. It features a locking ramp for secure mating and is rated for 4.8A per pin.
Mfr Part #:

IPL1-102-01-L-D-RA-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPL1-102-01-L-D-RA-K is a 4-position, 2.54mm pitch, right-angle shrouded header with male pins. It features a locking ramp for secure mating and is rated for 4.8A per pin.
✓ Total Stock: 3,956 pcs
$ Price Range: $1.53 - $2.68

IPL1-102-01-L-D-RA-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
3,956 pcs
On Request
3956 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPL1-102-01-L-D-RA-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

IPL1-102-01-L-D-RA-K Description

Short technical summary and product information.

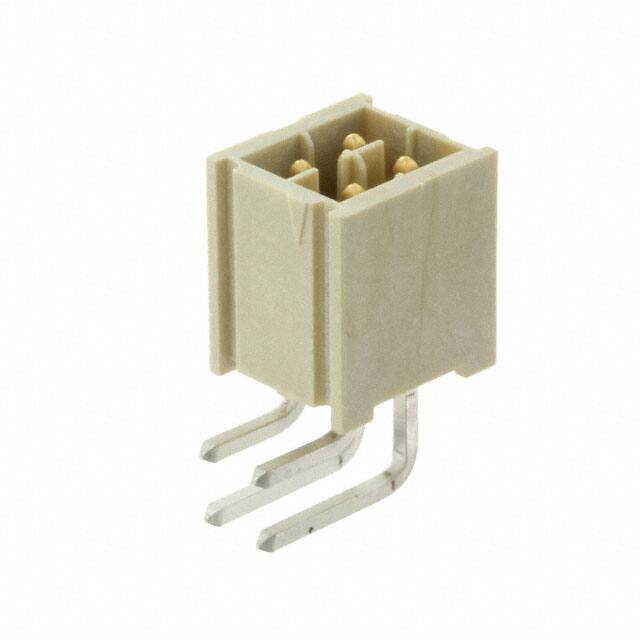

The Samtec IPL1-102-01-L-D-RA-K is a 4-position (2-row) header connector from the IPL1 series. It features a right-angle, through-hole mounting style with a 2.54mm pitch and 2.54mm row spacing. The connector is shrouded with four walls and includes a locking ramp for secure fastening.



The male pin contacts are made of phosphor bronze with a gold mating finish (10 µ") and tin tail finish. The insulator is natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +125°C.



The header is rated for 4.8A per pin (with 2 pins powered, 20 AWG wire) and a maximum voltage of 675 VAC or 954 VDC. It is designed for board-to-cable/wire applications and mates with Samtec MMSD, MMSS, MMSDT, MMSST cable assemblies.



The component is lead-free solderable and RoHS3 compliant (unverified). Moisture sensitivity level is 1 (unlimited).

IPL1-102-01-L-D-RA-K Quick Information

Product Type: Header
Series: IPL1
Canonical Name: Samtec IPL1-102-01-L-D-RA-K Header, 4 Position, 2.54mm, Right Angle, Male Pin, Shrouded
Subcategory: Shrouded Header

IPL1-102-01-L-D-RA-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPL1-102-01-L-D-RA-K Estimated Pricing

Qty Low High
1+ $2.68 $2.68
85+ $2.17 $2.17
255+ $1.89 $1.89
510+ $1.79 $1.79
5,015+ $1.53 $1.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPL1-102-01-L-D-RA-K Features

  • 4-position, 2-row, 2.54mm pitch header.
  • Right-angle through-hole mounting style.
  • Shrouded 4-wall design with locking ramp.
  • Gold-plated phosphor bronze contacts.
  • Rated for 4.8A per pin and 675VAC/954VDC.

IPL1-102-01-L-D-RA-K Applications

  • Board to cable/wire connections.
  • Mates with Samtec MMSD/MMSS cable assemblies.
  • Suitable for industrial and commercial applications.
  • Used in applications requiring secure locking connection.

IPL1-102-01-L-D-RA-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the IPL1-102-01-L-D-RA-K have?

4 positions, arranged in 2 rows.

What is the pitch of the IPL1-102-01-L-D-RA-K?

2.54mm (0.100")

What is the current rating per pin?

4.8 A per pin (with 2 pins powered, 20 AWG wire).

What is the voltage rating of the header?

675 VAC and 954 VDC maximum.

What is the mounting style of the IPL1-102-01-L-D-RA-K?

Through hole, right angle with solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material?

Phosphor bronze with gold plating on mating surface and tin on tail.
