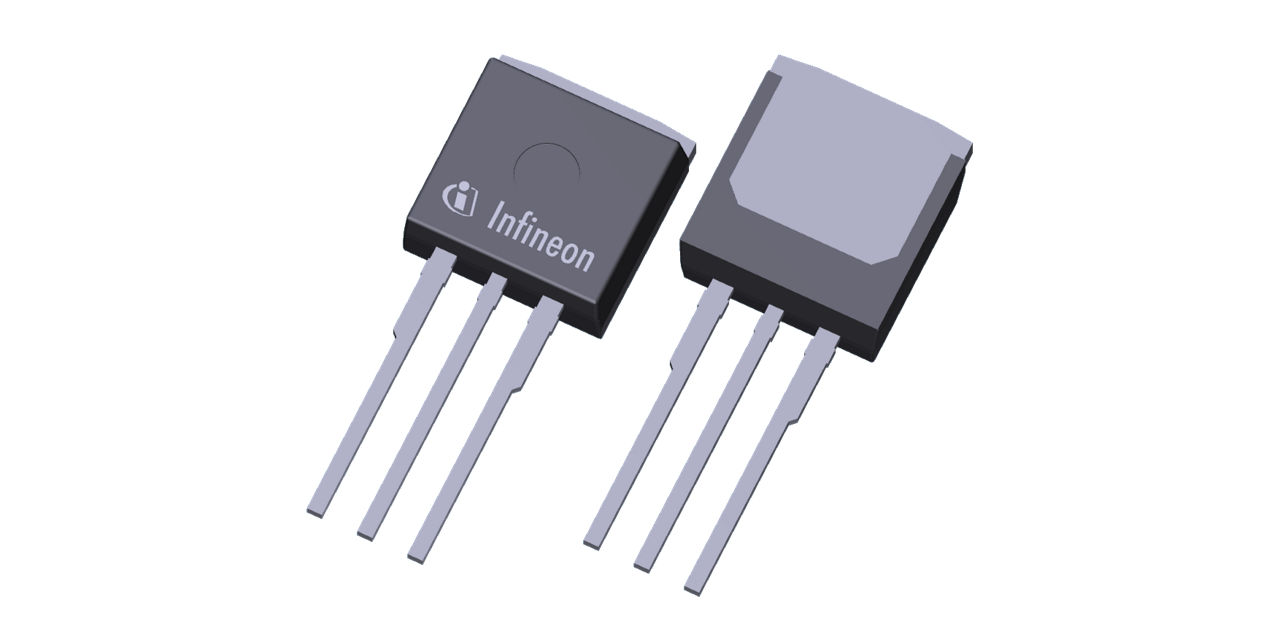

The Infineon IPI120N04S4-01 is an N-channel MOSFET designed for power applications. It offers a 40V drain-source breakdown voltage and a low on-state resistance.

✓ Total Stock: 3,550 pcs

$ Price Range: $2.40

IPI120N04S4-01 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,350 pcs On Request	2350 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,200 pcs On Request	1200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IPI120N04S4-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Mounting Type	Through Hole
Operating Temperature	175°C
Power Dissipation	188W

View Similar Products (0)

IPI120N04S4-01 Description

Short technical summary and product information.

The Infineon IPI120N04S4-01 is an N-channel OptiMOS®-T2 power transistor. It features a drain-source breakdown voltage of 40V and a low on-state resistance, with R DS(on) as low as 1.5 mΩ at 10V gate-source voltage and 100A drain current for the SMD version.

This AEC-qualified MOSFET operates at temperatures up to 175°C and has a continuous drain current rating of 120A at 25°C case temperature. It is available in PG-TO220-3, PG-TO262-3, and PG-TO263-3 packages, supporting both through-hole and surface-mount applications.

Key electrical characteristics include a gate threshold voltage typically around 3V, and dynamic parameters such as input capacitance (Ciss) up to 14000pF and output capacitance (Coss) up to 3150pF. The device also includes a reverse diode with a continuous forward current of 120A.

IPI120N04S4-01 Quick Information

Product Type: MOSFET

Series: OptiMOS®-T2

Canonical Name: Infineon OptiMOS®-T2 Power-Transistor N-channel MOSFET

Subcategory: N-Channel

IPI120N04S4-01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPI120N04S4-01 Estimated Pricing

Qty	Low	High
1+	$2.40	$2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPI120N04S4-01 Features

40V drain-source breakdown voltage.
Low 1.5mΩ on-state resistance.
120A continuous drain current.
AEC qualified for automotive use.
Operates up to 175°C.

IPI120N04S4-01 Applications

Suitable for EPS motor control.
Used in automotive power systems.
Ideal for high-current switching.
Efficient power conversion designs.

IPI120N04S4-01 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the drain-source breakdown voltage for the IPI120N04S4-01?

The drain-source breakdown voltage is 40V.

What is the typical gate threshold voltage?

The typical gate threshold voltage is 3V.

What is the maximum on-state resistance (Rds(on))?

The maximum on-state resistance is 1.9mΩ at 10V gate-source voltage and 100A drain current, and 1.5mΩ for the SMD version under the same conditions.

What is the continuous drain current rating?

The continuous drain current is 120A at 25°C case temperature and 120A at 100°C case temperature.

What is the operating temperature range?

The operating and storage temperature range is -55°C to +175°C.

What package types are available for the IPI120N04S4-01?

The IPI120N04S4-01 is available in PG-TO220-3, PG-TO262-3, and PG-TO263-3 packages.
