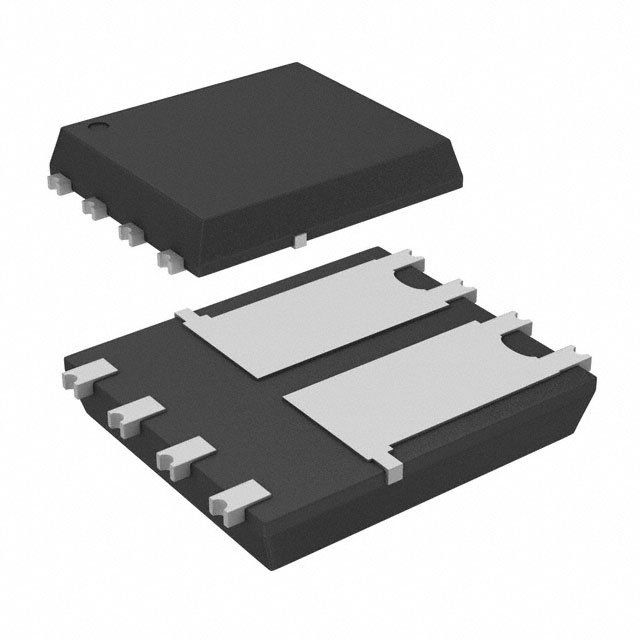

The IPG20N06S2L35AATMA1 is a dual N-channel logic level MOSFET from Infineon Technologies, part of the OptiMOS power transistor family. It features a maximum drain-source voltage of 55V and a continuous drain current of 20A at Tc=25°C. The device offers low on-resistance: 28 mΩ typical and 35 mΩ maximum at VGS=10V, ID=15A, and 35 mΩ typical and 44 mΩ maximum at VGS=4.5V, ID=10A. Gate threshold voltage ranges from 1.2V minimum to 2.0V maximum, enabling logic level drive.
This MOSFET is AEC Q101 qualified for automotive applications and is RoHS compliant (Green Product). It is 100% avalanche tested with a single-pulse avalanche energy rating of 100 mJ. The operating junction temperature range is -55°C to 175°C, and the device is MSL1 rated up to 260°C peak reflow. Dynamic characteristics include typical input capacitance of 610 pF, output capacitance of 180 pF, and reverse transfer capacitance of 65 pF at VDS=25V, f=1MHz. Switching times are fast: turn-on delay 3 ns, rise time 5 ns, turn-off delay 25 ns, fall time 15 ns.
The device is housed in a PG-TDSON-8 package, suitable for automatic optical inspection (AOI). Thermal resistance from junction to case is 2.3 K/W. The dual-channel configuration is ideal for space-constrained designs requiring two independent MOSFETs. Applications include automotive engine control, DC-DC converters, motor drives, and load switching.
