| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,320 pcs
|
16320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16,320 pcs
|
16320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Failure Rate | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IPDD60R080G7XTMA1 is a 600V N-Channel MOSFET from Infineon Technologies, part of the CoolMOS G7 series. This device utilizes C7 GOLD technology to achieve a best-in-class figure of merit (RDS(on)*Eoss and RDS(on)*Qg). It is designed for both hard and soft switching topologies, making it suitable for power factor correction (PFC) and high-performance LLC converters.
Key electrical specifications include a maximum drain current of 29A (at Tc) with a pulsed drain current of 83A. The drain-to-source on-resistance is typically 80mOhm at Vgs=10V and Id=9.7A. The device features a low gate charge of 42nC and input capacitance of 1640pF at 400V. The operating junction temperature range is -55°C to 150°C.

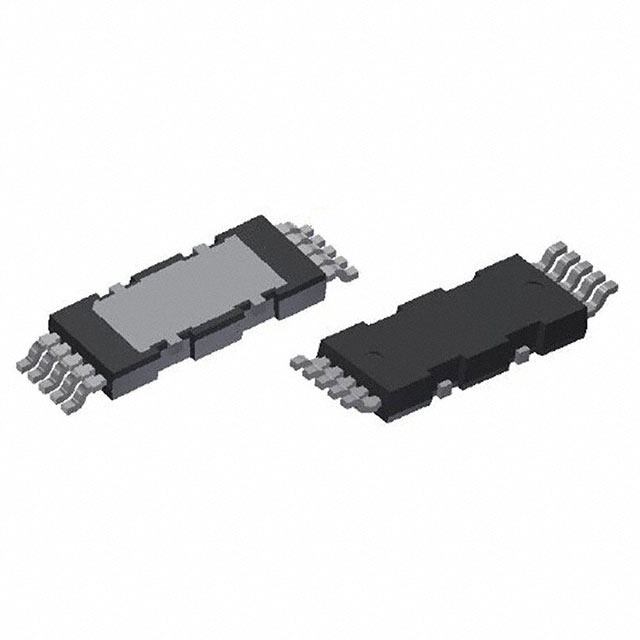

The IPDD60R080G7XTMA1 is packaged in a 10-PowerSOP module (PG-HDSOP-10-1), which is a surface-mount DDPAK package with an integrated 4-pin Kelvin Source configuration. This reduces parasitic source inductance to approximately 3nH, enabling faster switching and improved efficiency. The package is MSL1 compliant and fully lead-free.
This MOSFET is fully qualified according to JEDEC for industrial applications. It is ideal for high-power SMPS designs in computing, server, telecom, UPS, and solar applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.88 | $7.88 |
| 10+ | $5.34 | $5.34 |
| 100+ | $3.83 | $3.83 |
| 500+ | $3.54 | $3.54 |
| 1,000+ | $3.51 | $3.51 |
| 1,700+ | $3.51 | $3.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 600V at Tj=25°C, and 650V at maximum junction temperature.
It is available in a 10-PowerSOP module (PG-HDSOP-10-1) surface-mount package.
The junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant and fully lead-free per the datasheet.
Maximum continuous drain current is 29A at Tc, with a pulsed drain current of 83A.
Total gate charge is 42nC at Vgs=10V.
