| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
97 pcs
|
97 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Reverse Recovery Time | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

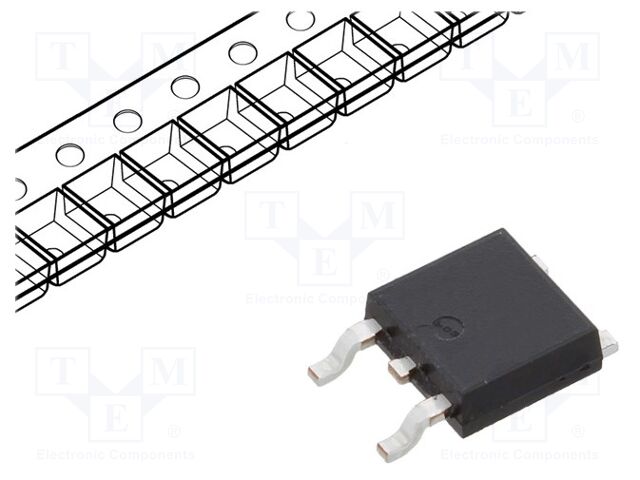

The Infineon IPD90R1K2C3ATMA1 is an N-Channel enhancement mode power MOSFET built with CoolMOS technology. It features a drain-source voltage rating of 900V and a continuous drain current of 5.1A at 25°C case temperature. The device offers low conduction losses with a maximum on-resistance of 1.2 Ohm at 2.8A gate drive. Gate charge is typically 28 nC, and input capacitance is 710 pF, enabling efficient switching.
This MOSFET is designed for high-voltage power conversion applications including quasi-resonant flyback and forward topologies, PC silverbox power supplies, and industrial SMPS. It is avalanche rated at 68 mJ single pulse and exhibits extreme dv/dt capability. The internal diode has a typical forward voltage of 0.8V and a reverse recovery time of 310 ns.
Packaged in a PG-TO252-3 (DPak) surface mount package, the device supports a maximum power dissipation of 83W at 25°C case temperature. Operating junction temperature range is -55°C to 150°C. The component is RoHS compliant and features Pb-free lead plating.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.73 | $0.73 |
| 5,000+ | $0.70 | $0.70 |
| 12,500+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum 900V.
5.1A at 25°C case temperature, 3.2A at 100°C.
TO-252-3 (DPak) surface mount package.
-55°C to 150°C junction temperature.
Yes, RoHS3 compliant.
28 nC at 10V.
1.2 Ohm at 2.8A, 10V.
