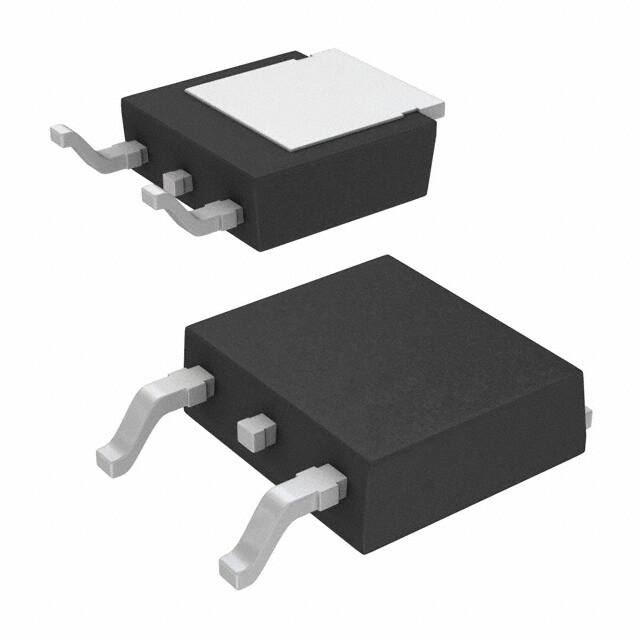

IPD90R1K2C3 The Infineon IPD90R1K2C3BTMA1 is an N-Channel MOSFET with a 900V breakdown voltage and 5.1A continuous drain current. It comes in a TO-252-3 package.
Mfr Part #:

IPD90R1K2C3

Available from 4 distributors
Mfr Name: Infineon
Infineon
The Infineon IPD90R1K2C3BTMA1 is an N-Channel MOSFET with a 900V breakdown voltage and 5.1A continuous drain current. It comes in a TO-252-3 package.
✓ Total Stock: 10,343 pcs
$ Price Range: $0.99

IPD90R1K2C3 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,655 pcs
On Request
4655 pcs On Request 1 On Request On Request 20+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,367 pcs
On Request
3367 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,321 pcs
On Request
1321 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPD90R1K2C3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Drive Voltage (Max Rds On, Min Rds On)
Failure Rate
Gate Charge
Input Capacitance
Lead Style
Mounting Type
Number of Elements
Operating Mode
Operating Temperature
Power Dissipation (Max)
SVHC Present
Tape & Reel
View Similar Products (0)

IPD90R1K2C3 Description

Short technical summary and product information.

The Infineon IPD90R1K2C3BTMA1 is an N-Channel MOSFET belonging to the CoolMOS™ series. It features a high breakdown voltage of 900V and a continuous drain current of 5.1A at 25°C.



Key electrical specifications include a gate drive voltage of 10V, a typical Rds On of 1.2Ω at 2.8A and 10V, and a maximum power dissipation of 83W. The device operates within a temperature range of -55°C to 150°C.



Packaged in a TO-252-3, DPak (2 Leads + Tab), SC-63 surface mount package, this MOSFET is supplied on tape and reel. It is suitable for applications requiring high voltage and current handling capabilities in a compact form factor.

IPD90R1K2C3 Quick Information

Product Type: MOSFET
Series: CoolMOS™
Canonical Name: Infineon IPD90R1K2C3BTMA1 N-Channel MOSFET
Subcategory: N-Channel

IPD90R1K2C3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPD90R1K2C3 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPD90R1K2C3 Features

  • 900V drain-source breakdown voltage.
  • 5.1A continuous drain current.
  • 1.2Ω typical Rds On.
  • TO-252-3 surface mount package.
  • CoolMOS™ series technology.

IPD90R1K2C3 Applications

  • High-voltage switching power supplies
  • Power factor correction circuits
  • LED lighting drivers
  • Industrial motor drives
  • Solar inverter applications

IPD90R1K2C3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the continuous drain current for the IPD90R1K2C3BTMA1?

The continuous drain current (Id) at 25°C is 5.1A.

What is the breakdown voltage of the IPD90R1K2C3BTMA1?

The drain-source breakdown voltage is 900V.

What is the Rds On for the IPD90R1K2C3BTMA1?

The typical Rds On is 1.2Ω when measured at 2.8A and 10V.

What is the package type for the IPD90R1K2C3BTMA1?

The IPD90R1K2C3BTMA1 is supplied in a TO-252-3, DPak (2 Leads + Tab), SC-63 package.

What is the operating temperature range for this MOSFET?

The operating temperature range is -55°C to 150°C TJ.

Is the IPD90R1K2C3BTMA1 RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the IPD90R1K2C3BTMA1?

The Moisture Sensitivity Level is 1 Unlimited.
