| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,960 pcs
|
2960 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

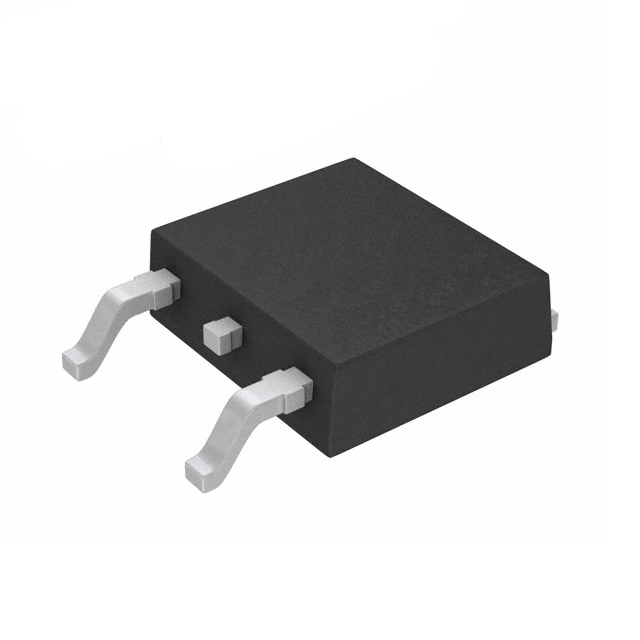

The IPD85P04P4L06ATMA2 is a P-Channel enhancement mode MOSFET from Infineon Technologies, part of the OptiMOS-P2 family. It is designed for logic level gate drive with 4.5V and 10V drive voltages, making it suitable for low-voltage power management applications. Key electrical characteristics include a maximum drain-source voltage of 40V, continuous drain current of 85A at 25°C, and low on-resistance of 6.4mOhm max at 10V (5.3mOhm typical). The device exhibits a total gate charge of 104nC and input capacitance of 6580pF, enabling efficient switching. Switching times are typical: turn-on delay 17ns, rise time 10ns, turn-off delay 62ns, fall time 39ns. The MOSFET is avalanche rated with a single pulse energy of 30mJ. It is packaged in a surface mount PG-TO252-3-313 (DPak) package, rated for MSL1 up to 260°C peak reflow. The operating junction temperature range is -55°C to 175°C. The datasheet indicates AEC qualification and RoHS compliance (green package), though compliance statuses are unverified. The part is suitable for automotive, industrial, and general power switching applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $1.45 | $1.45 |
| 100+ | $0.98 | $0.98 |
| 500+ | $0.78 | $0.78 |
| 1,000+ | $0.71 | $0.71 |
| 2,500+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (VDS) is 40V.
It is available in a TO-252-3 (DPak) surface mount package (PG-TO252-3-313).
The junction temperature range is -55°C to 175°C.
It is marked as RoHS3 compliant (green package) but not verified.
5.3 mOhm typical, 6.4 mOhm maximum at 85A, 10V.
85A.
Minimum -1.2V, typical -1.7V, maximum -2.2V at 150µA.
