| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,020 pcs
|
11020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

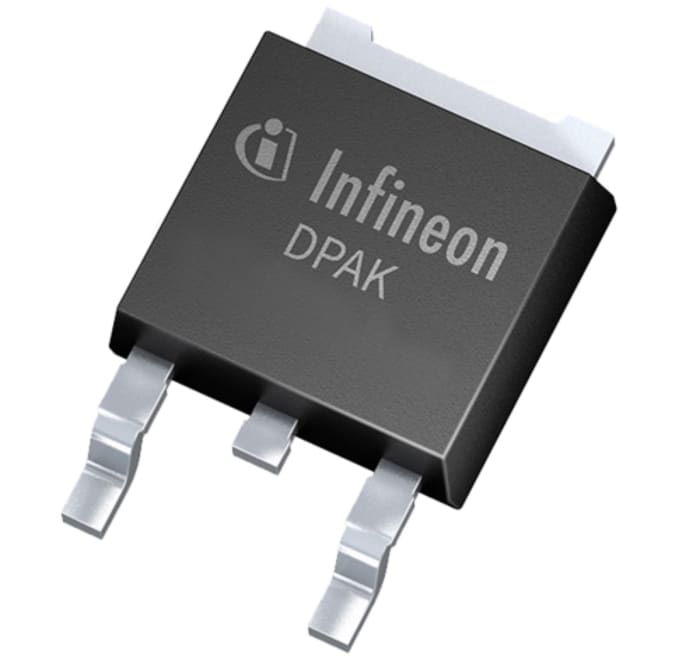

The Infineon IPD78CN10NGATMA1 is a single N-channel power MOSFET built on OptiMOS2 technology, offering a drain-source voltage of 100V and continuous drain current of 13A at 25°C (9A at 100°C). It features a low typical on-resistance of 59mΩ (78mΩ maximum) at VGS=10V. Dynamic characteristics include a typical input capacitance of 538pF, total gate charge of 8nC, and fast switching times with turn-on delay of 9ns and fall time of 3ns. The device is rated for avalanche energy of 17mJ and supports operating junction temperatures from -55°C to 175°C.
The MOSFET is designed for high-frequency switching and synchronous rectification applications. It is qualified according to JEDEC standards and is RoHS compliant with halogen-free construction according to IEC61249-2-21. The part is offered in a PG-TO252-3 surface-mount package (DPak) with Pb-free lead plating. Thermal resistance is 4.9 K/W junction-to-case and 75 K/W junction-to-ambient (minimal footprint).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 10+ | $0.69 | $0.69 |
| 100+ | $0.45 | $0.45 |
| 500+ | $0.39 | $0.39 |
| 1,000+ | $0.36 | $0.36 |
| 2,500+ | $0.32 | $0.32 |
| 5,000+ | $0.31 | $0.31 |
| 10,000+ | $0.31 | $0.31 |
| 25,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (VDS) is 100V nominal, with a breakdown voltage minimum of 100V.
The package is PG-TO252-3, equivalent to TO-252-3 (DPak), surface mount.
The operating junction temperature range is -55°C to 175°C.
Yes, the datasheet confirms RoHS3 compliance and Pb-free lead plating.
The continuous drain current is 13A at Tc=25°C and 9A at Tc=100°C.
Typical total gate charge is 8 nC at VGS=10V.
The maximum drain-source on-resistance is 78 mΩ at VGS=10V, ID=13A.
