| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,520 pcs
|
18520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IPD600N25N3GATMA1 is an N-channel power MOSFET from Infineon Technologies, part of the OptiMOS 3 series optimized for high-frequency switching and synchronous rectification. It offers a maximum drain-source voltage of 250V and a continuous drain current of 25A at 25°C case temperature, with pulsed drain current capability up to 100A. On-resistance is rated at 60mOhm maximum at Vgs=10V and Id=25A, ensuring low conduction losses.
Key electrical characteristics include a gate threshold voltage of 2-4V, input capacitance of 2350pF, and total gate charge of 29nC at 10V gate drive. The device also specifies avalanche energy (single pulse) of 210mJ and a reverse diode dv/dt capability of 10kV/µs, making it robust for demanding switching applications. Thermal resistance from junction to case is 1.1K/W, with maximum power dissipation of 136W at 25°C.

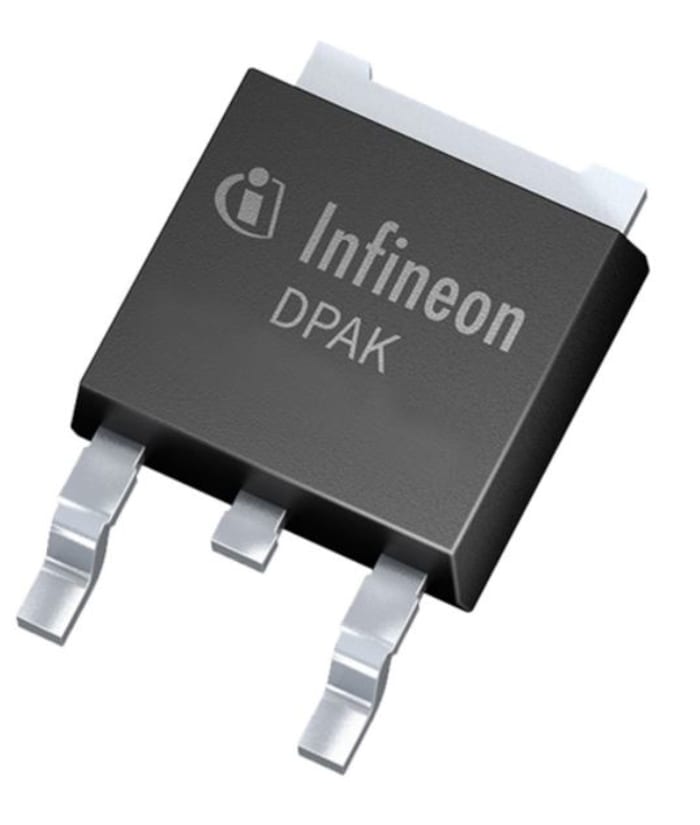

The MOSFET is housed in a PG-TO252-3 (DPak) surface-mount package, suitable for automated assembly. It operates over a junction temperature range of -55°C to 175°C. The datasheet confirms halogen-free compliance according to IEC61249-2-21 and Pb-free lead plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.42 | $3.42 |
| 10+ | $2.23 | $2.23 |
| 100+ | $1.55 | $1.55 |
| 500+ | $1.26 | $1.26 |
| 1,000+ | $1.23 | $1.23 |
| 2,500+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is250V.
At case temperature of25°C, the maximum continuous drain current is25A; at100°C it is18A.
The maximum drain-source on-resistance is60mOhm at Vgs=10V and Id=25A.
It comes in a T-252--3, DPAk (2 leads + tab), SC-63 surface-mount package (PG-TO252--3).
The maximum gate threshold voltage is 4V at Id=90µA (Vds=Vgs). Typical value is 3V.
