The IPD50R800CE is a 500V N-Channel power MOSFET from Infineon Technologies' CoolMOS CE family. It utilizes superjunction technology to achieve low on-resistance and fast switching performance. With a maximum drain current of 7.6A and a typical gate charge of 12.4nC, this device is optimized for high-efficiency power conversion.
Key electrical characteristics include a maximum drain-source voltage of 500V (550V at Tj,max), a pulsed drain current rating of 15.5A, and an output capacitance energy of 1.46µJ at 400V. The device is designed for ease of use with a typical gate drive voltage of 13V.

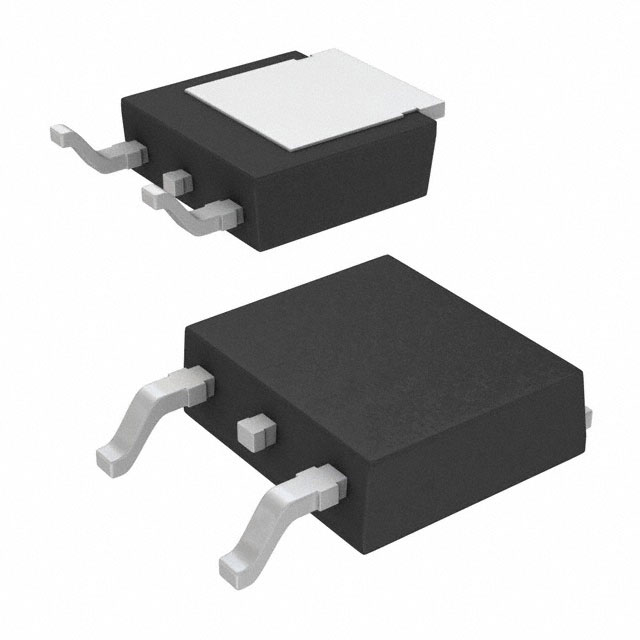

The MOSFET is housed in a surface-mount TO-252 (DPAK) package, specifically the PG-TO252-3-344 variant. It is Pb-free plated and uses halogen-free mold compound, complying with environmental standards. The device is qualified for standard grade applications.
Typical applications include PFC stages, hard switching PWM stages, and resonant switching stages in power supplies for PCs, adapters, LCD/PDP TVs, and indoor lighting.
The maximum drain-source voltage is 500V, and 550V at Tj,max.
The device is available in a surface-mount TO-252 (DPAK) package, specifically PG-TO252-3-344.
The operating junction temperature range is -55°C to 150°C.
The device is indicated as RoHS3 compliant, but this status is unverified.
The maximum continuous drain current is 7.6A at Tc.
The typical gate charge is 12.4nC at Vgs=10V.
Typical applications include PFC stages, hard switching PWM, and resonant switching in power supplies for PCs, adapters, TVs, and lighting.
