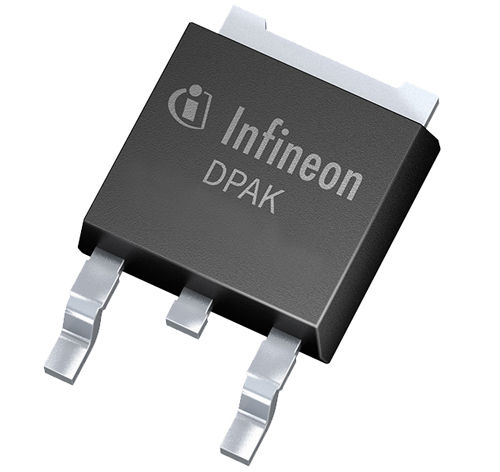

The IPD50R520CP is an N-Channel MOSFET from Infineon Technologies, part of the CoolMOS CP series. It features a drain-source breakdown voltage of 500V (minimum) and a continuous drain current of 7.1A at 25°C case temperature. The device has a maximum on-resistance of 520 mOhm at 10V gate drive. It is designed for hard- and soft-switching SMPS topologies, DCM PFC for lamp ballast, and PWM for lamp ballast, PDP, and LCD TV applications. The MOSFET is surface-mounted in a TO-252-3 (DPak) package with a PG-TO252-3-11 supplier package. It operates over a junction temperature range of -55°C to 150°C and has a maximum power dissipation of 66W at 25°C. The device is RoHS compliant with Pb-free lead plating. Key electrical characteristics include a typical gate charge of 13 nC and input capacitance of 680 pF. The avalanche energy rating is 166 mJ single pulse. The gate threshold voltage is typically 3V. This MOSFET is suitable for high-efficiency power conversion applications.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.72 | $0.72 |
| 5,000+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage is 550V (maximum rating), with a minimum breakdown voltage of 500V at 250µA.
It is available in a surface-mount TO-252-3 (DPak) package, also designated as PG-TO252-3-11.
The junction temperature range is -55°C to 150°C.
Yes, it is RoHS compliant with Pb-free lead plating.
The continuous drain current is 7.1A at 25°C case temperature and 4.5A at 100°C.
The typical on-resistance is 470 mOhm at 10V gate drive and 3.8A, with a maximum of 520 mOhm.
The gate threshold voltage is typically 3V, with a minimum of 2.5V and maximum of 3.5V at 250µA.
