| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
660 pcs
|
660 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Infineon IPD50P04P4L11ATMA2 is a P-Channel enhancement mode power MOSFET from the OptiMOS-P2 family, designed for logic-level gate drive. It offers a drain-source breakdown voltage of -40V and a continuous drain current of -50A at Tc=25°C, with pulsed current capability up to -200A.
Key electrical characteristics include a maximum on-resistance of 10.6mOhm at VGS=-10V and ID=-50A, and a typical gate threshold voltage of -1.7V. The device features input capacitance of 3900pF and total gate charge of 59nC, enabling efficient switching at moderate frequencies. It is 100% avalanche tested with single-pulse avalanche energy rating of 18mJ.

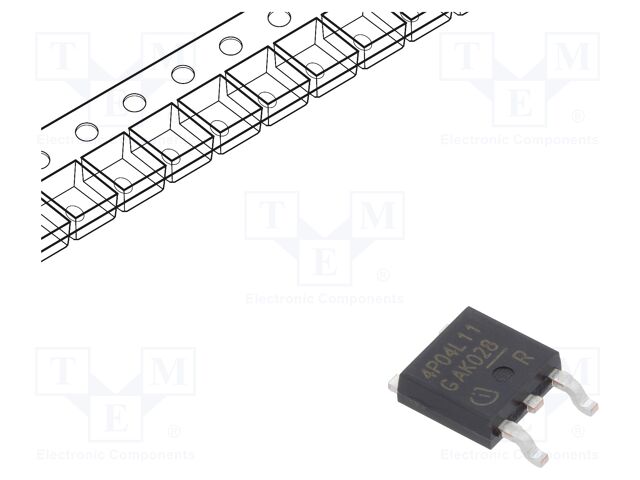

The MOSFET is housed in a surface-mount TO-252-3 (DPak) package with supplier device package PG-TO252-3-313. It operates over a junction temperature range of -55°C to 175°C and has a maximum power dissipation of 58W. The part is AEC qualified, MSL1 rated up to 260°C peak reflow, and RoHS compliant. Its electrical and thermal characteristics make it suitable for reverse battery protection, load switching, and power management applications in automotive and industrial systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.15 | $1.15 |
| 100+ | $0.77 | $0.77 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.55 | $0.55 |
| 2,500+ | $0.50 | $0.50 |
| 5,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40V (P-Channel).
TO-252-3 (DPak, 2 leads + tab, SC-63) with supplier package PG-TO252-3-313.
-55°C to 175°C (junction temperature).
Yes, the datasheet states it is a Green Product (RoHS compliant).
-50A at Tc=25°C with VGS=-10V.
Yes, it is AEC qualified according to the datasheet.
-1.7V (minimum -1.2V, maximum -2.2V at ID=-85µA).
