| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,286 pcs
|
10286 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
5,229 pcs
|
5229 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,543 pcs
|
1543 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IPD50N04S4-08 is a 40V N-Channel MOSFET from Infineon Technologies. It is a surface-mount power transistor designed for load switching and power conversion circuits. With a continuous drain current rating of 50A (at Tc) and a maximum drain-source voltage of 40V, this device is suitable for moderate-voltage power applications.
Key electrical parameters include a maximum on-resistance of 7.9 mΩ at 10V gate drive and 50A drain current, a gate threshold voltage up to 4V, and a maximum gate charge of 22.4 nC. The input capacitance is 1780 pF at 6V. The recommended drive voltage is 10V to achieve the specified on-resistance.

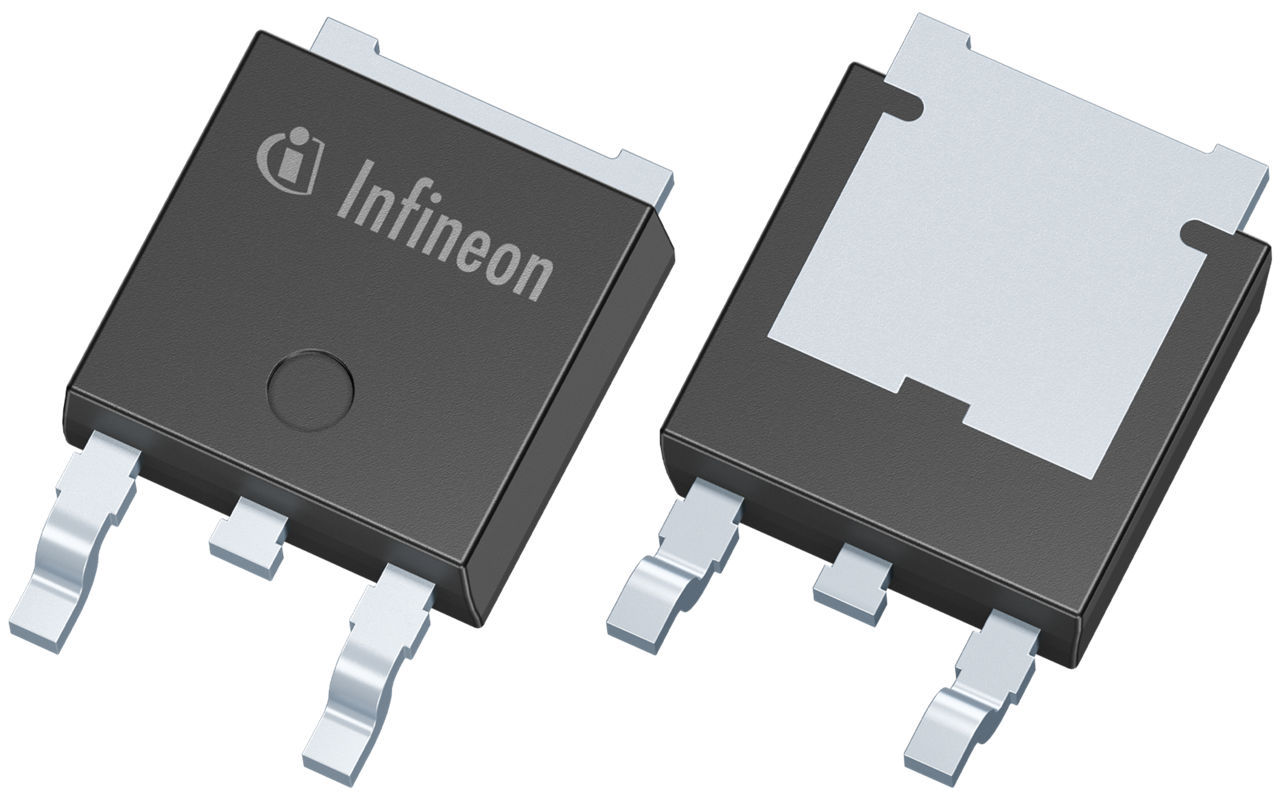

The MOSFET is supplied in a TO-252-3 (DPak) surface-mount package with the supplier device package designation PG-TO252-3-313. It can dissipate up to 46W of power at case temperature and operates over a junction temperature range of -55°C to 175°C, making it robust for demanding environments.
The component is listed as RoHS3 compliant and has an MSL rating of 1 (unlimited), simplifying handling and reflow soldering processes. These specifications ensure compatibility with modern lead-free assembly lines.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.47 | $1.47 |
| 10+ | $0.91 | $0.91 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.40 | $0.40 |
| 2,500+ | $0.27 | $0.27 |
| 5,000+ | $0.26 | $0.26 |
| 25,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 V
TO-252-3, DPak (2 Leads + Tab), SC-63 (surface mount)
-55°C to 175°C
It is listed as RoHS3 compliant in the database.
7.9 mΩ at Id=50A, Vgs=10V
50 A at case temperature (Tc)
22.4 nC at Vgs=10V
