| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Infineon Technologies IPD35N10S3L26ATMA1 is an N-Channel enhancement mode power MOSFET from the OptiMOS-T family, designed for automotive and industrial power switching applications. It is qualified to AEC Q101 and operates over a junction temperature range of -55°C to 175°C.
This MOSFET offers a drain-source voltage (Vdss) of 100V and a continuous drain current of 35A at 25°C case temperature. The typical on-resistance is 20.0 mΩ at Vgs=10V and 24.5 mΩ at Vgs=4.5V, enabling efficient low-voltage gate drive operation. Dynamic performance includes typical input capacitance of 2070 pF and total gate charge of 30 nC, supporting fast switching.

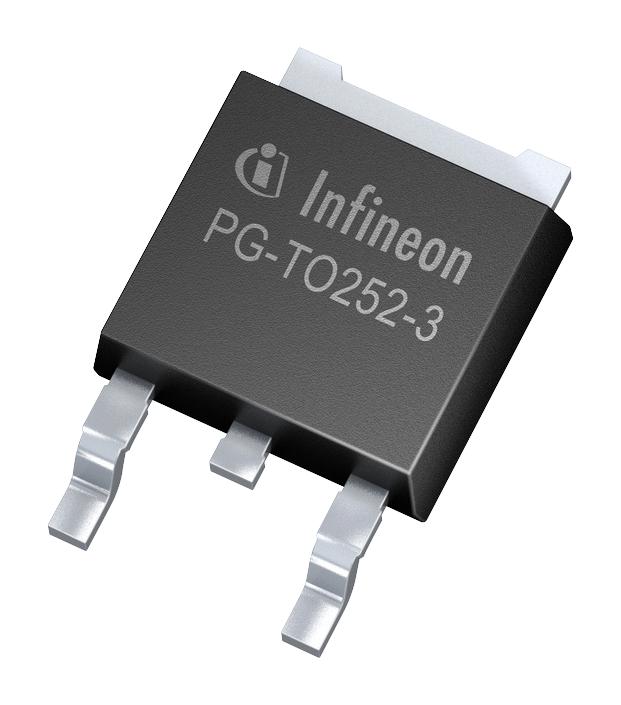

The device is housed in a surface-mount PG-TO252-3-11 package (DPak) and is RoHS compliant with MSL1 moisture sensitivity level up to 260°C peak reflow. It is 100% avalanche tested, with a single-pulse avalanche energy rating of 175 mJ.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.37 | $2.37 |
| 10+ | $1.52 | $1.52 |
| 100+ | $1.03 | $1.03 |
| 500+ | $0.75 | $0.75 |
| 2,500+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 100V.
The continuous drain current is 35A at Tc=25°C and 25A at Tc=100°C.
The junction operating temperature range is -55°C to 175°C.
It is available in a PG-TO252-3-11 surface-mount package (TO-252-3, DPak).
Yes, it is RoHS3 compliant as verified by the datasheet.
The typical on-resistance is 20.0 mΩ at Vgs=10V and Id=35A.
The gate threshold voltage ranges from 1.2V minimum to 2.4V maximum, with a typical value of 1.7V at Id=39µA.
