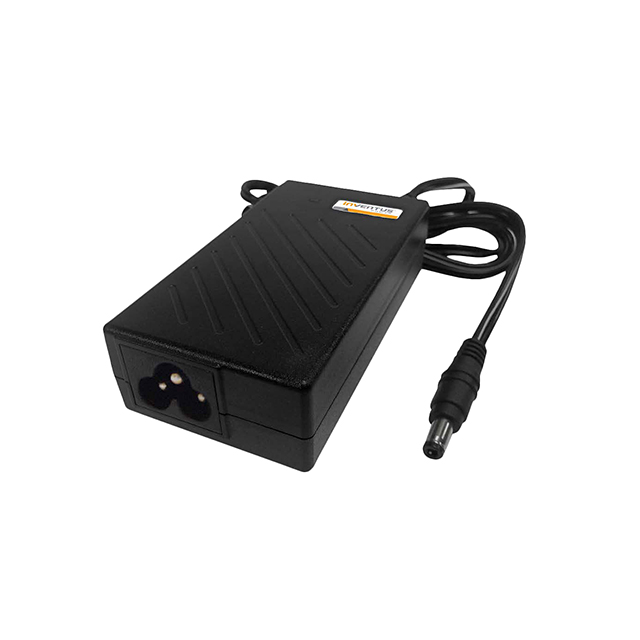

The Inventus Power IPD3019-760 is a versatile AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 19V output with a maximum current of 1.6A, totaling 30W of power.
This adapter operates with an input voltage range of 85 to 264VAC and boasts a high efficiency of 89.9% (typical), meeting Level VI standards. The input connector is an IEC 320-C6, and the output is a 2.5mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. Its compact dimensions are 89.6mm x 48.8mm x 25.2mm.
The operating temperature range is from 0°C to 60°C, and it includes protections against over current, over voltage, over temperature, and short circuits. The adapter also features a power indicator and a low no-load power consumption of 100mW maximum. The cord is sold separately.
The operating temperature range is 0°C to 60°C.
The adapter provides 19V output at up to 1.6A maximum current.
The adapter supports an input voltage range of 85 to 264 VAC.
Protection features: over current, over voltage, over temperature, and short circuit.
The typical efficiency is 89.9%, meeting Level VI standards.
It uses a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center polarity.
It is a desktop Class I adapter with an IEC 320-C6 input connector.
