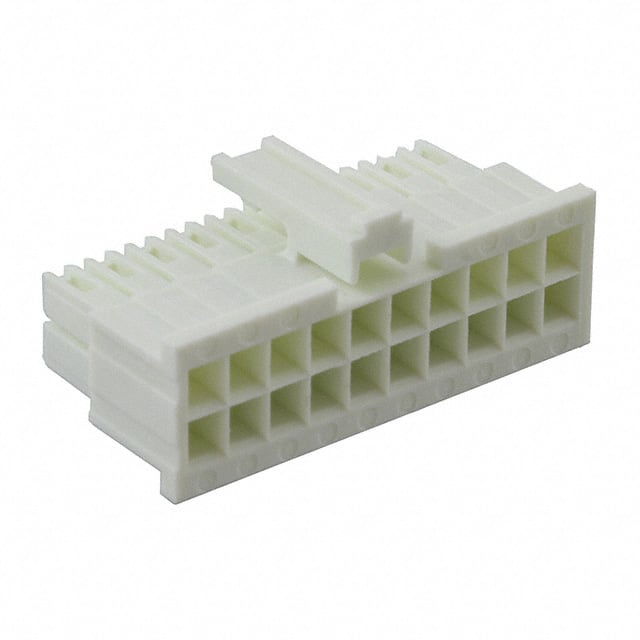

IPD1-10-D-K 20 position, 2 row receptacle housing with 2.54mm pitch, crimp termination, latch lock fastening, and polarizing key.
Mfr Part #:

IPD1-10-D-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
20 position, 2 row receptacle housing with 2.54mm pitch, crimp termination, latch lock fastening, and polarizing key.
✓ Total Stock: 82 pcs
$ Price Range: $0.28 - $0.59

IPD1-10-D-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
82 pcs
On Request
82 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPD1-10-D-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Features
Insulator Material
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Tape & Reel
Termination Style
View Similar Products (0)

IPD1-10-D-K Description

Short technical summary and product information.

The Samtec IPD1-10-D-K is a rectangular connector housing from the IPD1 series. It is a 20 position receptacle housing configured with 2 rows at 2.54mm pitch and 2.54mm row spacing. The housing is designed for free hanging (in-line) mounting with crimp termination contacts.



The insulator is molded from white nylon rated UL 94 V0 for flammability resistance. The latch mechanism uses nickel-plated beryllium copper and provides a retention force of 4.45N (1.000 lb). A polarizing key feature ensures correct mating orientation.

IPD1-10-D-K Quick Information

Product Type: Rectangular Connector Housing
Series: IPD1
Canonical Name: IPD1-10-D-K Rectangular Connector Housing
Subcategory: Wire-to-Board / Wire-to-Wire

IPD1-10-D-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPD1-10-D-K Estimated Pricing

Qty Low High
1+ $0.59 $0.59
50+ $0.56 $0.56
100+ $0.48 $0.48
500+ $0.41 $0.41
1,000+ $0.36 $0.36
2,000+ $0.29 $0.29
6,000+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPD1-10-D-K Features

  • 20 position, 2 row receptacle housing.
  • 2.54mm pitch with 2.54mm row spacing.
  • Crimp termination for female socket contacts.
  • Latch lock fastening with 4.45N retention force.
  • Polarizing key prevents incorrect mating.

IPD1-10-D-K Applications

  • Used in wire-to-board connector systems.
  • Suitable for internal harness wiring.
  • Ideal for applications requiring polarized connections.

IPD1-10-D-K FAQs

3 frequently asked questions generated from this part’s specifications.
How many positions does the IPD1-10-D-K have?

20 positions arranged in 2 rows.

What is the pitch of the IPD1-10-D-K?

2.54mm (0.100 inches), with the same 2.54mm row spacing.

What mounting type does this housing use?

Free hanging (in-line) mounting.
