Mfr Part #:

IPD047N03LF2SATMA1

The Infineon Technologies IPD047N03LF2SATMA1 is an N-channel MOSFET designed for power applications. It features a 30V drain-source voltage and a low on-resistance.

✓ Total Stock: 3,504 pcs

$ Price Range: $1.71

IPD047N03LF2SATMA1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Risen Electronics ✓ Non-Authorised Inventory information	3,504 pcs On Request	3504 pcs	On Request	1	On Request	On Request	On Request	On Request	2026-02-16 21:33:16

IPD047N03LF2SATMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon Technologies
Gate Charge	45 nC
Input Capacitance	600 pF
Lead Style	Gull Wing
Mounting Type	Surface Mount
Operating Temperature	150 °C
Tape & Reel	Yes

View Similar Products (0)

IPD047N03LF2SATMA1 Description

Short technical summary and product information.

The Infineon Technologies IPD047N03LF2SATMA1 is a high-performance N-channel MOSFET. It is rated for a maximum drain-source voltage of 30V and a continuous drain current of 50A at 25°C with Vgs=10V. The on-resistance (Rds On) is as low as 4.7 mOhm at Vgs=10V and Id=50A, and 5.5 mOhm at Vgs=4.5V and Id=50A.

This MOSFET is suitable for various power management applications. Key electrical characteristics include a typical gate charge of 45 nC and input capacitance of 600 pF. The operating temperature range is up to 150°C.

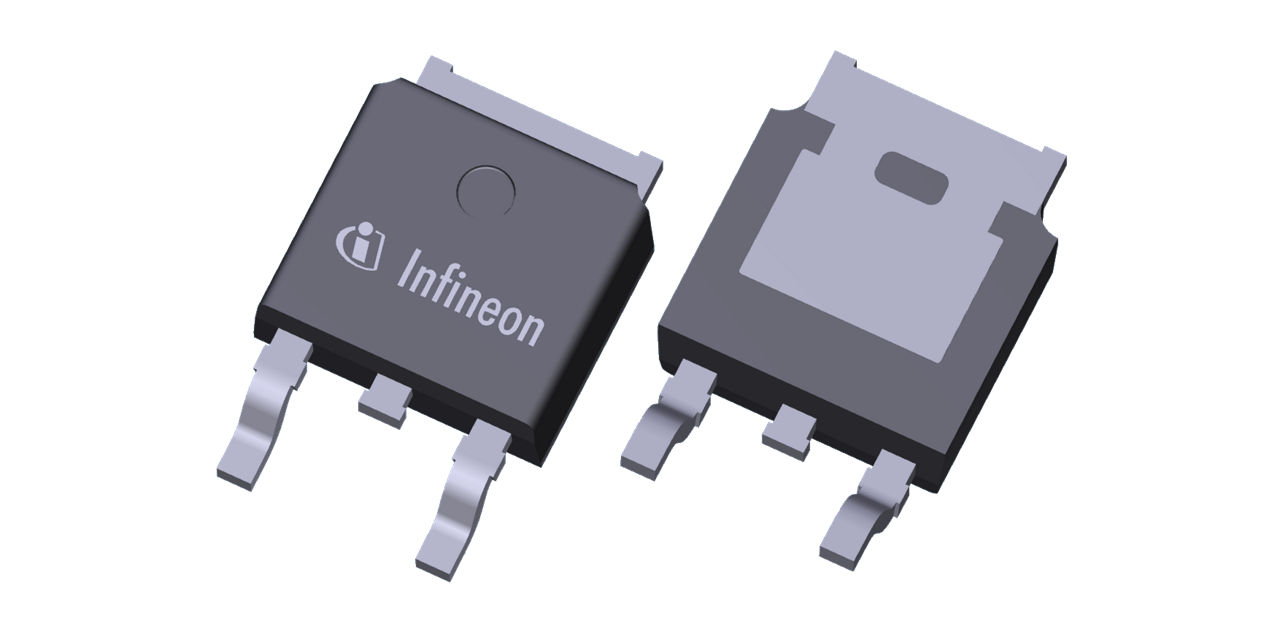

The IPD047N03LF2SATMA1 comes in a TO-252-3 surface mount package. It is supplied on tape and reel with a standard package quantity of 2500 units.

IPD047N03LF2SATMA1 Quick Information

Product Type: MOSFET

Series: OptiMOS™

Canonical Name: Infineon Technologies IPD047N03LF2SATMA1 N-channel MOSFET

Subcategory: N-Channel

IPD047N03LF2SATMA1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPD047N03LF2SATMA1 Estimated Pricing

Qty	Low	High
1+	$1.71	$1.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPD047N03LF2SATMA1 Features

N-channel MOSFET technology.
30V drain-source voltage rating.
50A continuous drain current.
Low 4.7 mOhm Rds On.
TO-252-3 surface mount package.

IPD047N03LF2SATMA1 Applications

Power supply circuits.
DC-DC converters.
Motor control applications.
Load switching.

IPD047N03LF2SATMA1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of the IPD047N03LF2SATMA1?

30V.

What is the continuous drain current rating?

50A at 25°C case temperature.

What is the typical on-resistance?

4.7mOhm at Vgs=10V, Id=50A.

What is the gate charge?

45nC typical.

What is the operating junction temperature?

150°C.

What package is the device available in?

TO-252-3 (DPAK) surface mount.

What is the mounting type?

Surface mount.
