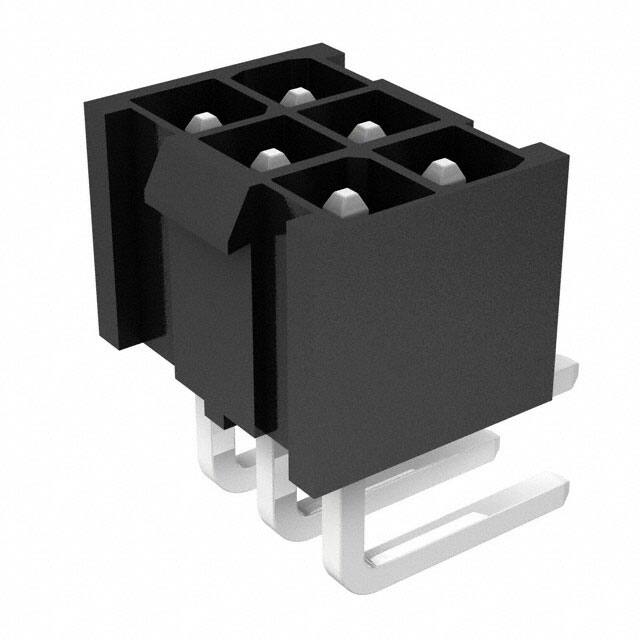

IPBT-103-H1-T-D-RA Right angle header with 6 positions, 2 rows, 4.2mm pitch. Through-hole solder termination with locking ramp fastening.
Mfr Part #:

IPBT-103-H1-T-D-RA

Available from 3 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Right angle header with 6 positions, 2 rows, 4.2mm pitch. Through-hole solder termination with locking ramp fastening.
✓ Total Stock: 4,319 pcs
$ Price Range: $1.69 - $2.88

IPBT-103-H1-T-D-RA Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,885 pcs
On Request
3885 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
217 pcs
On Request
217 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
217 pcs
On Request
217 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPBT-103-H1-T-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Storage Temperature
Style
Termination
Voltage Rating
View Similar Products (0)

IPBT-103-H1-T-D-RA Description

Short technical summary and product information.

The Samtec IPBT-103-H1-T-D-RA is a 6-position, 2-row right angle header from the IPBT series. It features a shrouded 4-wall design with a locking ramp for secure mating in board-to-board or cable applications. Contacts are male pins made of copper alloy with a tin finish, rated for 9.3A when two pins are powered. The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Operating temperature ranges from -55°C to 105°C. Voltage rating is 400VAC and 565VDC. Mounting is through-hole, right angle with solder termination. This connector is suitable for power distribution in industrial, automotive, and consumer electronics where reliable high-current connections are required.

IPBT-103-H1-T-D-RA Quick Information

Product Type: Header, Male Pins
Series: IPBT
Canonical Name: Samtec IPBT-103-H1-T-D-RA Header, Male Pins, Right Angle, 6 Positions, 4.2mm Pitch
Subcategory: Male Pins

IPBT-103-H1-T-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPBT-103-H1-T-D-RA Estimated Pricing

Qty Low High
1+ $2.88 $2.88
10+ $2.45 $2.45
100+ $2.08 $2.08
500+ $1.86 $1.86
1,000+ $1.77 $1.77
5,000+ $1.69 $1.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPBT-103-H1-T-D-RA Features

  • Shrouded 4-wall design for contact protection.
  • Locking ramp ensures secure mating.
  • Rated for 400VAC and 565VDC.
  • Operating temperature range -55°C to 105°C.
  • UL94 V-0 flammability rated insulation.

IPBT-103-H1-T-D-RA Applications

  • Suitable for power supply connections.
  • Used in board-to-board or cable applications.
  • Ideal for industrial control systems.
  • Common in automotive electronics.

IPBT-103-H1-T-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the IPBT-103-H1-T-D-RA have?

It has 6 positions in 2 rows, all loaded.

What is the pitch of this header?

The pitch is 4.2mm (0.165") with row spacing also 4.2mm.

What is the current rating?

9.3A when two pins are powered, per the series datasheet.

What is the voltage rating?

400VAC and 565VDC.

What is the mounting type?

Through-hole, right angle with solder termination.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin over 50 µ" (1.27 µm) nickel.
