Mfr Part #:

IPBS-108-01-T-D-GP

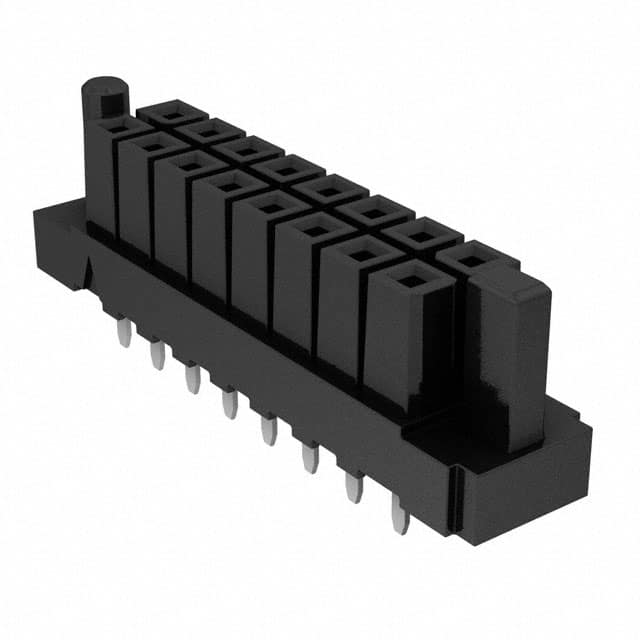

16 position, 2 row female socket header from Samtec IPBS series. 4.20 mm pitch, through hole termination, tin contact finish.

✓ Total Stock: 1 pcs

$ Price Range: $1.89 - $2.62

IPBS-108-01-T-D-GP Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	1524	On Request	On Request

IPBS-108-01-T-D-GP Description

Short technical summary and product information.

The Samtec IPBS-108-01-T-D-GP is a 16-position, 2-row female socket header from the IPBS series of board-to-board power connectors. It features a 4.20 mm pitch and row spacing, designed for through-hole mounting with solder termination. The connector has a push-pull fastening type and includes a guide pin feature. The insulator is black LCP (Liquid Crystal Polymer), and the contacts are phosphor bronze with a tin finish.

Electrical ratings include a current capacity of 9.3 A (nominal with 2 pins powered) and a voltage rating of 400VAC / 565VDC. The operating temperature range is -55°C to 105°C. Typical creepage and clearance are 4.27 mm and 3.05 mm respectively. The connector is rated for board-to-board applications.

The component is lead-free solderable per the datasheet. RoHS and REACH compliance are indicated but unverified. MSL is rated as 1 (unlimited). This part is commonly used in power distribution and interconnection applications within electronic systems.

IPBS-108-01-T-D-GP Quick Information

Product Type: Rectangular Connector

Series: IPBS

Canonical Name: Samtec Inc. IPBS-108-01-T-D-GP, 16 Position, 2 Row, Board to Board Female Socket Header, Through Hole, 4.20 mm Pitch

Subcategory: Female Socket Header

IPBS-108-01-T-D-GP Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable

IPBS-108-01-T-D-GP Estimated Pricing

Qty	Low	High
1+	$2.62	$2.62
24+	$2.45	$2.45
60+	$2.39	$2.39
504+	$2.29	$2.29
1,008+	$2.17	$2.17
2,508+	$1.93	$1.93
5,004+	$1.89	$1.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPBS-108-01-T-D-GP Features

16 positions in 2 rows at 4.20 mm pitch.
Rated for 9.3 A and 400VAC/565VDC.
Through hole mounting with solder termination.
Black LCP insulator and tin plated contacts.
Guide pin feature for alignment.

IPBS-108-01-T-D-GP Applications

Board-to-board power interconnect applications.
Power distribution within electronic assemblies.
Industrial control and automation systems.
Consumer electronics requiring high current.

IPBS-108-01-T-D-GP FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPBS-108-01-T-D-GP have?

It has 16 positions arranged in 2 rows.

What is the pitch of the IPBS-108-01-T-D-GP?

The pitch is 4.20 mm.

What is the current rating of this connector?

The current rating is 9.3 A (nominal with 2 pins powered).

What is the voltage rating of the IPBS-108-01-T-D-GP?

The voltage rating is 400VAC / 565VDC.

What mounting type does this part use?

It uses through hole mounting with solder termination.

What is the operating temperature range?

-55°C to 105°C.

What is the contact material and finish?

The contacts are phosphor bronze with a tin finish.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Length	3.94 mm
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Current Rating	9.3 A
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Black
Insulation Height	12.20 mm
Insulator Material	LCP (Liquid Crystal Polymer)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	4.20 mm
Row Spacing	4.20 mm
Style	Board to Board
Tape & Reel	No
Termination	Solder
Voltage Rating	400VAC, 565VDC
