| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1524 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

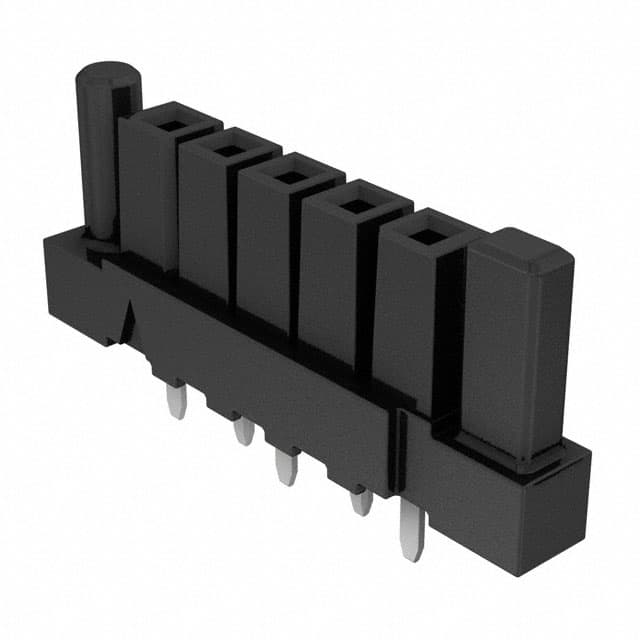

The Samtec IPBS-105-01-T-S-GP is a 5-position, single row, through hole header from the IPBS series. It features a 4.20mm (0.165") pitch and tin plated phosphor bronze contacts. The insulator is molded from black LCP (Liquid Crystal Polymer).
This header is rated for 9.3A (with 2 pins powered) and 400VAC/565VDC. It operates over a temperature range of -55°C to 105°C. The push-pull fastening type and guide pin feature make it suitable for board-to-board applications.
The component is lead-free solderable and has a through hole termination style. It is designed for use in power distribution and signal interconnection within electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
| 51+ | $1.61 | $1.61 |
| 102+ | $1.51 | $1.51 |
| 510+ | $1.36 | $1.36 |
| 1,003+ | $1.33 | $1.33 |
| 2,006+ | $1.20 | $1.20 |
| 5,015+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 5 positions in a single row.
The pitch is 4.20mm (0.165").
The typical current rating is 9.3A with 2 pins powered.
It is rated for 400VAC and 565VDC.
It is a through hole mounting header with solder termination.
The operating temperature range is -55°C to 105°C.
The contacts are phosphor bronze with a tin finish.
