| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clearance | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| Creepage | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Plating | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Voltage Rating (Nominal @ DC) |

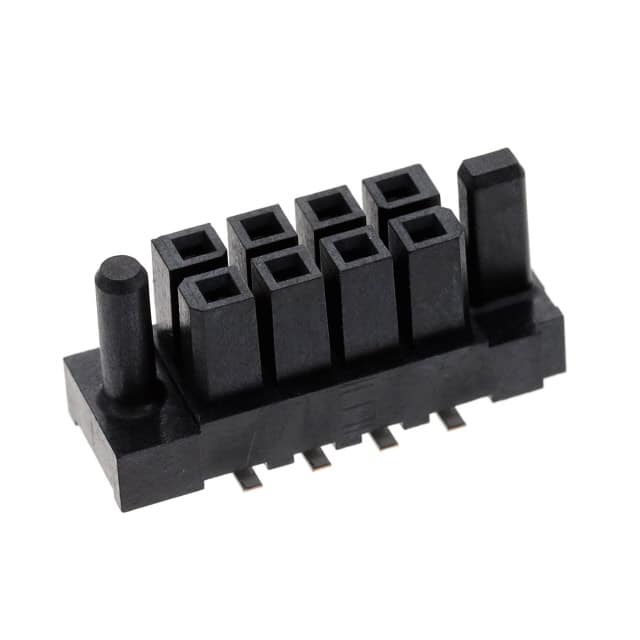

The Samtec IPBS-104-02-T-D-GP is an 8-position, 2-row female socket header from the IPBS series, designed for board-to-board applications requiring isolated power. It features a 4.20mm pitch and surface mount termination with solder contacts. The insulator is black LCP with an insulation height of 12.20mm, and the contacts are phosphor bronze with tin plating over 50 µ" nickel.
Electrical ratings include 9.3A current (2 pins powered) and voltage ratings of 400VAC and 565VDC. The operating temperature range is -55°C to 105°C. Creepage is 4.27mm and clearance is 3.05mm, ensuring reliable isolation. The header includes a guide pin feature for alignment and uses a push-pull fastening type.
This component is lead-free solderable and RoHS3 compliant (unverified). It is suitable for power distribution in industrial, automotive, and telecom systems where compact, high-current connections are needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
| 60+ | $2.21 | $2.21 |
| 100+ | $1.97 | $1.97 |
| 500+ | $1.88 | $1.88 |
| 1,000+ | $1.72 | $1.72 |
| 2,000+ | $1.64 | $1.64 |
| 5,000+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
4.20mm (0.165").
9.3A (2 pins powered).
400VAC and 565VDC.
Surface mount.
-55°C to 105°C.
Tin.
